Scott Spark 720 2017

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,4 kg
Front travel
120mm
Rear travel
120mm

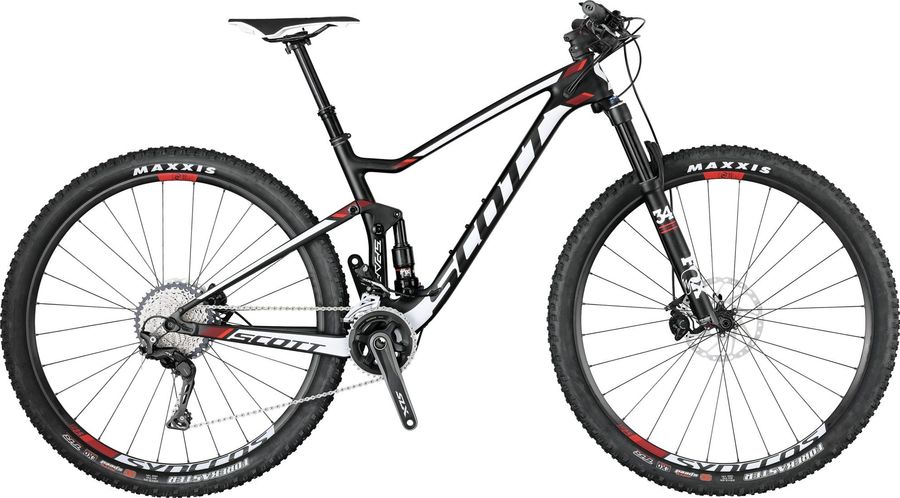

Scott Spark 720 2017

About the Scott Spark 720 2017

The Scott Spark 720 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,4 kg.

Features

The Scott Spark 720 2017 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
Saddle
Syncros XR2.0 / CROM rails
Headset
Syncros Pro Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
Seatpost
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 125mm
Handlebar
Syncros FL1.5 T-Bar / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano SLX FC-M7000-11-B2 / Hollowtech 2 700 Series: 36x26 T / 900 Series: 34x24 T
Shifter
Shimano SLX SL-M7000-11-I / Rapidfire Plus 2 way release / Ispec 2 clamp
Bottom bracket
Shimano BB-MT500-PA / shell 41x92mm
Front derailleur
Shimano SLX FD-M7020-11D / side swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW DM dropouts for Boost 148x12mm TBC Trunnion box construction
Front suspension
Fox 34 Float Performance
Rear suspension
Fox NUDE Trunnion
Wheels
Rims
Syncros XR2.5 / 28H / Tubeless ready
Tires
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
Spokes
DT Swiss Competition 2.0-1.8-2.0 Black
Rear hub
Syncros XR2.5 CL / Boost 148x12mm RWS axle / made by DT Swiss
Front hub
Syncros XR2.5 CL / 15x110mm made by DT Swiss

Geometry

Size SM MD LG
a
Seat tube length
410,0
440,0
490,0
b
Seat tube angle
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
d
Head tube length
100,0
105,0
115,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
44,0
44,0
44,0
g
Trail
101,4
101,4
101,4
h
Wheelbase
1108,2
1138,8
1170,0
i
Chainstay length
421,0
421,0
421,0
j
Bottom bracket drop
26,0
26,0
26,0
k
Stack height
561,9
566,5
575,7
l
Reach
402,7
431,4
458,7
m
Standover height
718,0
726,0
741,0
x
Bottom bracket height
325,5
325,5
325,5
y
Front center
688,0
719,0
750,0
