BikeWise

Scott Spark 730 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,8 kg
Front travel
130mm
Rear travel
85mm

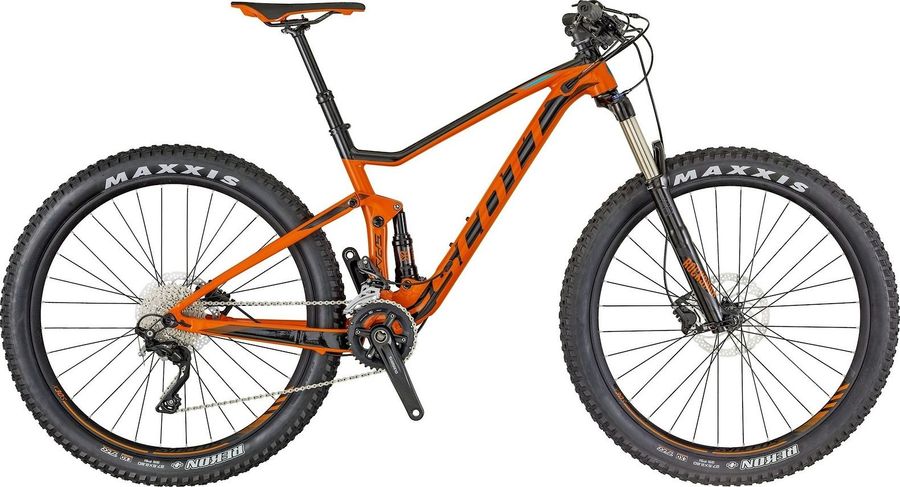

Scott Spark 730 2018

About the Scott Spark 730 2018

The Scott Spark 730 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,8 kg.

Features

The Scott Spark 730 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0, alloy 6061, 6° angle, 31.8mm clamp
Saddle
Syncros XM2.5
Headset
Syncros OE Press Fit
Seatpost
Syncros Dropper 2.5, 100mm drop (S), 120mm drop (M-XL)
Handlebar
Syncros FL2.0 Mini Riser, alloy 6061 D.B. 760mm width, 12mm rise, 9° sweep
Brake lever
Shimano M396
Brakes
Shimano Alivio BR-M395
Drivetrain
Crankset
Shimano FC-MT500-B2-10, Boost
Shifter
Shimano Deore SL-M6000-I, Rapidfire Plus
Bottom bracket
Shimano BB-MT500-PA, shell 41mm x 92mm
Front derailleur
Shimano Deore FD-M6020-D, side swing
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminum
Rear suspension
X-Fusion NUDE Trunnion
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Syncros X-30S, 30mm width, 32 hole, sleeve joint, tubeless ready
Tires
Maxxis Rekon, 2.8" Dual Compound TR 60tpi Kevlar bead
Spokes
Stainless Black 15G, 1.8mm
Rear hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm
Front hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,2º
73,2º
73,2º
73,2º
c
Top tube length
569,9
600,0
630,0
650,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
66,9º
66,9º
66,9º
66,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1121,1
1151,1
1182,3
1203,5
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
26,0
26,0
26,0
26,0
k
Stack height
591,1
591,1
600,3
609,5
l
Reach
389,3
419,4
446,6
463,9
m
Standover height
734,0
741,0
755,0
773,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
-
-
-
-
