Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
130mm
Rear travel
120mm

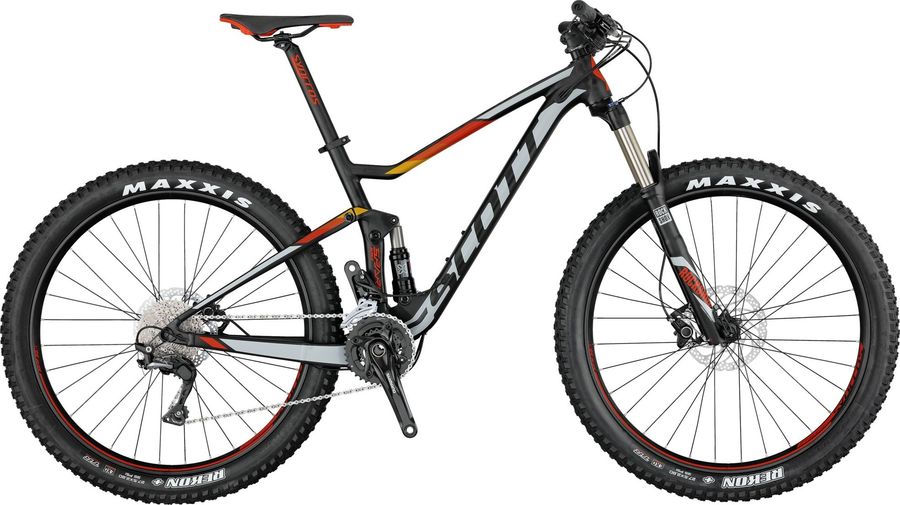

About the Scott Spark 730 Plus 2017
The Scott Spark 730 Plus 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 20 gears (2x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,9 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros 6061 Alloy oversize 31.8mm / 1 1/8" / 6° angle
|
|---|---|
|
Saddle
|
Syncros XM2.5
|
|
Headset
|
Syncros OE Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
Syncros / 31.6x400mm
|
|
Handlebar
|
Syncros FL2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 740mm
|
|
Brakes
|
Shimano Altus BR-M365
|
|
Crankset
|
Shimano FC-M627-B2 / 2-piece Design 36x22 T
|
|---|---|
|
Shifter
|
Shimano Deore SL-M610 / Rapidfire Plus 2 way release w/gear indicator
|
|
Bottom bracket
|
Shimano BB-MT500-PA / shell 41x92mm
|
|
Front derailleur
|
Shimano Deore FD-M617-D / side swing
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano SLX RD-M7000-10-SGS
313 g
SGS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Frame
|
Spark Plus Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / DM hanger dropouts for 148x12mm
|
|---|---|
|
Rear suspension
|
X-Fusion NUDE Trunnion
|
|
Front suspension
|
RockShox Sektor RL
DebonAir
|
|
|
|
|
Rims
|
Syncros X35 / 32H / 35mm Tubeless ready
|
|---|---|
|
Tires
|
Maxxis Rekon / 2.80 x 27.5 / 60TPI Kevlar Bead TR Tubeless ready Dual compound
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Shimano FH-M618-B CL / Boost 148x12mm RWS axle
|
|
Front hub
|
Shimano HB-M618-B CL / 15x110mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,2º
|
73,2º
|
73,2º
|
73,2º
|
|
c
Top tube length
|
569,9
|
600,0
|
630,0
|
650,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
66,9º
|
66,9º
|
66,9º
|
66,9º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
100,2
|
100,2
|
100,2
|
100,2
|
|
h
Wheelbase
|
1121,1
|
1151,1
|
1182,3
|
1203,5
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
36,0
|
36,0
|
36,0
|
36,0
|
|
k
Stack height
|
591,1
|
591,1
|
600,3
|
609,5
|
|
l
Reach
|
389,3
|
419,4
|
446,6
|
463,9
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
693,0
|
722,0
|
754,0
|
775,0
|
