BikeWise

Scott Spark 740 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,1 kg
Front travel
130mm
Rear travel
120mm

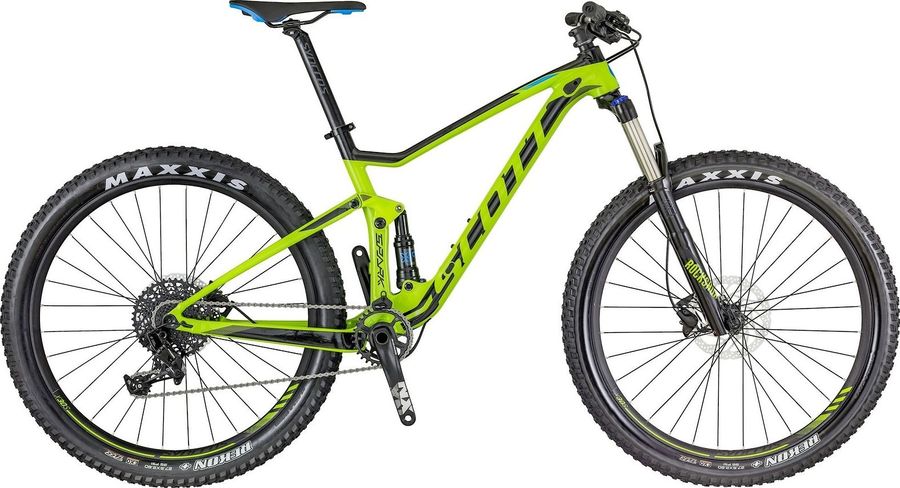

Scott Spark 740 2018

About the Scott Spark 740 2018

The Scott Spark 740 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,1 kg.

Features

The Scott Spark 740 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0, alloy 6061, 6° angle, 31.8mm clamp
Saddle
Syncros XM2.5
Headset
Syncros OE Press Fit
Seatpost
Syncros, 400mm length
Handlebar
Syncros FL2.0 Mini Riser, alloy 6061 D.B. 760mm width, 12mm rise, 9° sweep
Brake lever
Shimano M315
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
SRAM NX1, Boost
Shifter
SRAM NX1, 11-speed
Chain guide
Scott
Bottom bracket
SRAM GXP, press fit integrated, shell 41mm x 89.5mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Rear suspension
X-Fusion NUDE Trunnion
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Syncros X-30S, 30mm width, 32 hole, sleeve joint, tubeless ready
Tires
Maxxis Rekon, 2.8" Dual Compound TR 60tpi Kevlar bead
Spokes
Stainless Black 15G, 1.8mm
Rear hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm
Front hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,2º
73,2º
73,2º
73,2º
c
Top tube length
569,9
600,0
630,0
650,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
66,9º
66,9º
66,9º
66,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1121,1
1151,1
1182,3
1203,5
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
26,0
26,0
26,0
26,0
k
Stack height
591,1
591,1
600,3
609,5
l
Reach
389,3
419,4
446,6
463,9
m
Standover height
734,0
741,0
755,0
773,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
-
-
-
-
