Scott Spark 745 2017

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,2 kg
Front travel
120mm
Rear travel
120mm

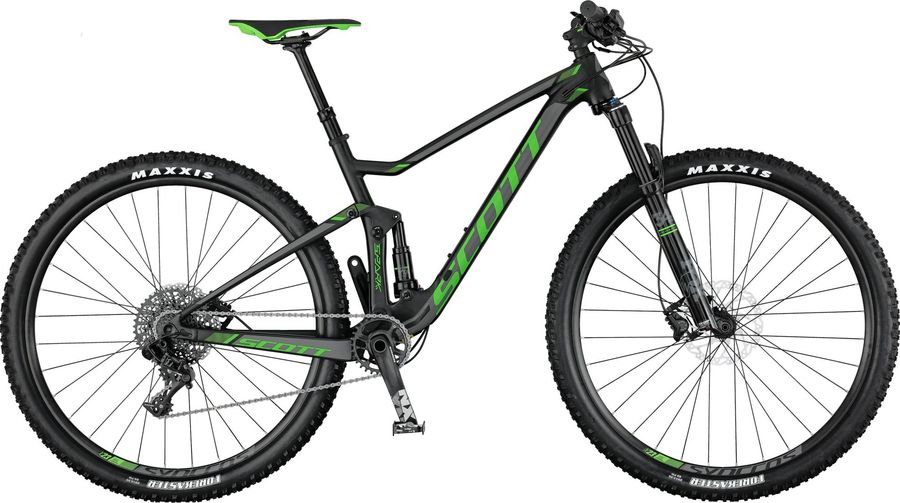

Scott Spark 745 2017

About the Scott Spark 745 2017

The Scott Spark 745 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,2 kg.

Features

The Scott Spark 745 2017 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Wellgo M-21
Components
Steam
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
Saddle
Syncros XR2.0 / CROM rails
Headset
Syncros Comp Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros Dropper 2.0 / YSP12 ICR / Remote 31.6mm / S size 100mm / M, L & XL 120mm
Handlebar
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Custom NX1 GXP Boost PF 700 Series: 32T / 900 Series: 30T
Shifter
SRAM NX1 Trigger
Bottom bracket
SRAM GXP PF integrated / shell 41x92mm
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Spark 3 Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 dropouts for 148x12mm
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS
Wheels
Rims
Syncros X-23 / 32H / Tubeless ready
Tires
Maxxis Forekaster / 2.35 / 60TPI Kevlar Bead Dual compound
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Syncros CL14811 / Boost 148x12mm RWS axle / XD / made by Formula
Front hub
Syncros CL811 / 15x110mm made by Formula

Geometry

Size SM MD LG
a
Seat tube length
410,0
440,0
490,0
b
Seat tube angle
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
d
Head tube length
100,0
105,0
115,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
44,0
44,0
44,0
g
Trail
101,4
101,4
101,4
h
Wheelbase
1108,2
1138,8
1170,0
i
Chainstay length
421,0
421,0
421,0
j
Bottom bracket drop
26,0
26,0
26,0
k
Stack height
561,9
566,5
575,7
l
Reach
402,7
431,4
458,7
m
Standover height
718,0
726,0
741,0
x
Bottom bracket height
325,5
325,5
325,5
y
Front center
688,0
719,0
750,0
