Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,2 kg
Front travel
120mm
Rear travel
120mm

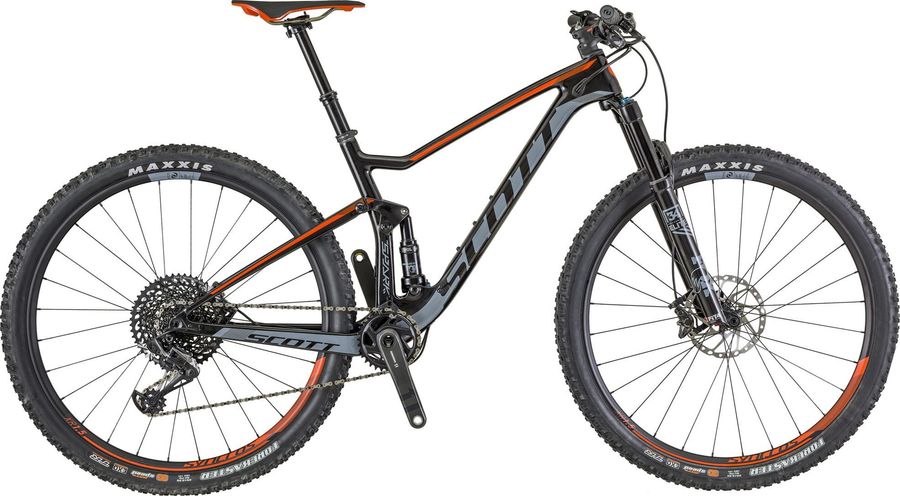

About the Scott Spark 900 2018
The Scott Spark 900 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro Lock-on
|
|---|
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XR1.5 / Titanium rails
|
|
Headset
|
Syncros Pro Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
|
|
Seatpost
|
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 125mm
|
|
Handlebar
|
Syncros FL1.5 T-Bar / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Brake lever
|
Shimano XT M8000
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
SRAM X1 Carbon Eagle GXP Boost PF QF 168 / 32T
|
|---|---|
|
Shifter
|
SRAM GX Trigger
|
|
Chain guide
|
Scott
|
|
Bottom bracket
|
SRAM GXP PF integrated / shell 41x92mm
|
|
Front derailleur
|
SCOTT Chainguide
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW dropouts for Boost 12x148mm TBC Trunnion box construction
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 34 Float Performance Elite
|
|
Rims
|
Syncros XR1.5 CL F: 15x110mm, R: 12 x 148mm Boost 25mm Tubless ready rim 28H / XD / DT RWS w/Removable Lever with Tool
|
|---|---|
|
Tires
|
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx Speed
|
|
Rear hub
|
Syncros XR1.5 CL, Boost front and rear
|
|
Front hub
|
Syncros XR1.5 CL, Boost front and rear
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
648,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
48,0
|
48,0
|
48,0
|
48,0
|
|
g
Trail
|
100,2
|
100,2
|
100,2
|
100,2
|
|
h
Wheelbase
|
1114,6
|
1144,6
|
1175,8
|
1196,9
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
43,0
|
43,0
|
43,0
|
43,0
|
|
k
Stack height
|
586,1
|
586,1
|
595,4
|
604,6
|
|
l
Reach
|
395,7
|
425,7
|
453,0
|
470,3
|
|
m
Standover height
|
731,0
|
739,0
|
753,0
|
771,0
|
|
x
Bottom bracket height
|
327,0
|
327,0
|
327,0
|
327,0
|
|
y
Front center
|
687,0
|
717,0
|
748,0
|
769,0
|
