Scott Spark 900 Ultimate 2019

MTB Trail
Groupset
SRAM XX1
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,3 kg
Front travel
120mm
Rear travel
120mm

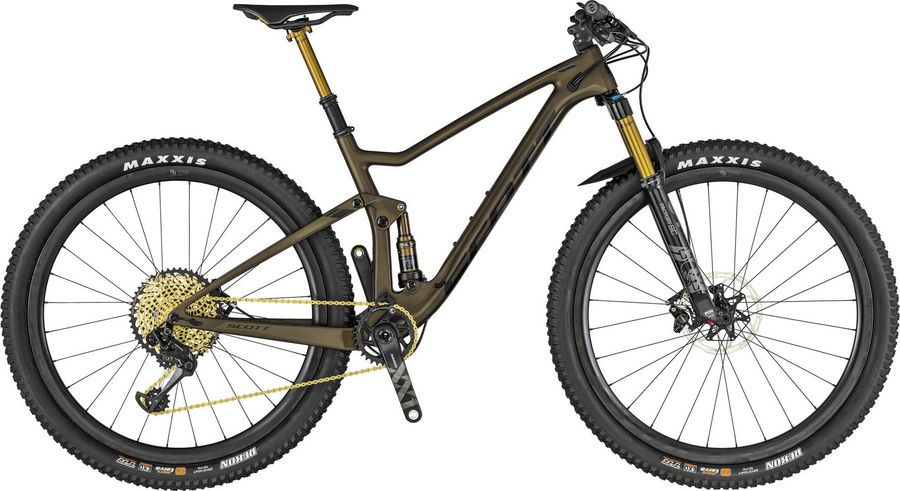

Scott Spark 900 Ultimate 2019

About the Scott Spark 900 Ultimate 2019

The Scott Spark 900 Ultimate 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,3 kg.

Features

The Scott Spark 900 Ultimate 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8" Garmin mount
Saddle
Syncros XR1.0 / Carbon rails
Headset
Syncros FL1.5 Drop in / Tapered 1.5"-1 1/8" Ti bearing diameter size 42mm and 52mm
Seatpost
FOX Transfer Dropper Remote Kashima / 31.6mm / S size 100mm / M, L & XL 125mm
Handlebar
Syncros FL1.0 Carbon T-Bar T shape flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 DUB Eagle Boost Carbon crankarm QF 168 / 32T
Shifter
SRAM XX1 EagleTrigger
Chain guide
SCOTT custom
Bottom bracket
SRAM DUB PF integrated / shell 41x92mm
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle Gold
Frameset
Frame
Spark 3 Carbon / IMP technology / HMX BB92 / Carbon SMC Link / Carbon swingarm SW dropouts for Boost 12x148mm 2.6 tire compatible / TBC Trunnion box construction
Rear suspension
Fox NUDE Trunnion
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
Syncros Silverton 1.0 CL F: 15x110mm, R: 12x148mm Boost 26mm Tubeless ready carbon rim 28H / XD Driver / DT RWS w/Removable Lever with Tool
Tires
Maxxis Rekon / 2.4" / 120TPI Kevlar Bead TR Tubeless Ready / EXO 3C maxx Terra Syncros Eco Sealant

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
648,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,2º
67,2º
67,2º
67,2º
f
Rake
48,0
48,0
48,0
48,0
g
Trail
100,2
100,2
100,2
100,2
h
Wheelbase
1114,6
1144,6
1175,8
1196,9
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
43,0
43,0
43,0
43,0
k
Stack height
586,1
586,1
595,4
604,6
l
Reach
395,7
425,7
453,0
470,3
m
Standover height
731,0
739,0
753,0
771,0
x
Bottom bracket height
327,0
327,0
327,0
327,0
y
Front center
687,0
717,0
748,0
769,0
