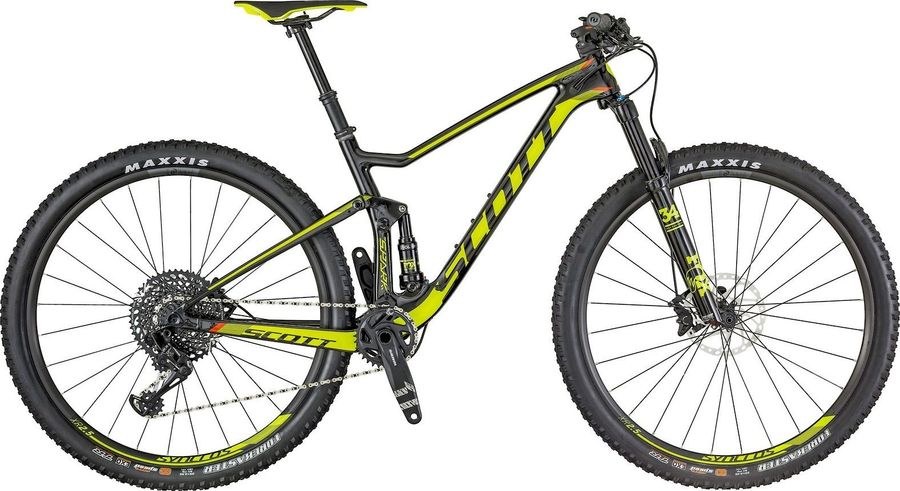

Scott Spark 920 2018
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,7 kg
Front travel
120mm
Rear travel
85mm
About the Scott Spark 920 2018
The Scott Spark 920 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 12,7 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Syncros Pro Lock-on
|
|---|
|
Steam
|
Syncros FL2.0, alloy 6061, integrated spacer and top cup, 6° angle, 31.8mm clamp
|
|---|---|
|
Saddle
|
Syncros XR2.0, chromoly rails
|
|
Headset
|
Syncros Pro Drop In
|
|
Seatpost
|
FOX Transfer Dropper, 100mm drop (S), 125mm drop (M-XL)
|
|
Handlebar
|
Syncros FL2.0 T-Bar, alloy 7050 D.B. 740mm width, 9° sweep, T-shape flat
|
|
Brake lever
|
Shimano SLX M7000
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM X1 1000 Eagle, Boost
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed
|
|
Bottom bracket
|
SRAM GXP, press fit, integrated, shell 41mm x 92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros XR2.5 CL, 25mm width, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Maxxis Forekaster, 2.35" EXO 3C MaxxSpeed TR 120tpi kevlar bead
|
|
Rear hub
|
Syncros XR2.5 CL, Boost front and rear
|
|
Front hub
|
Syncros XR2.5 CL, Boost front and rear
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
648,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1114,6
|
1144,6
|
1175,8
|
1196,9
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
47,0
|
47,0
|
|
k
Stack height
|
586,1
|
586,1
|
595,4
|
604,6
|
|
l
Reach
|
395,7
|
425,7
|
453,0
|
470,3
|
|
m
Standover height
|
731,0
|
739,0
|
753,0
|
771,0
|
|
x
Bottom bracket height
|
327,0
|
327,0
|
327,0
|
327,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
