Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,5 kg
Front travel
120mm
Rear travel
120mm

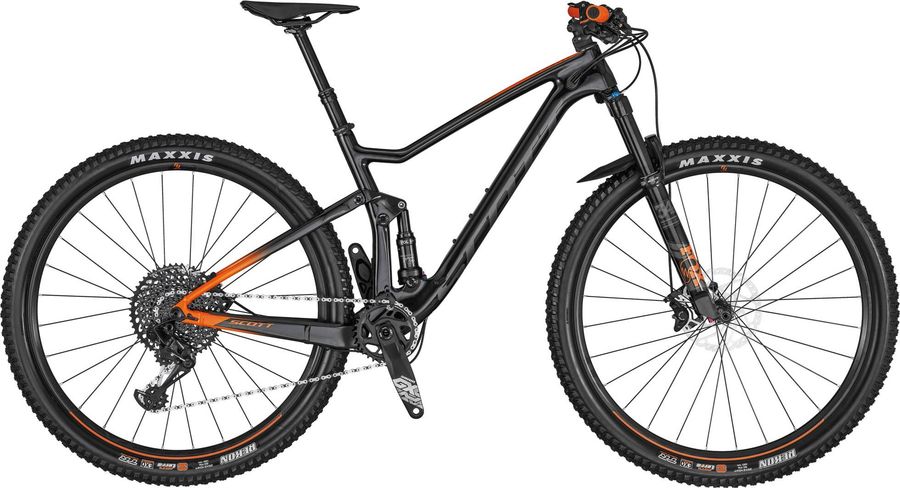

About the Scott Spark 920 2020
The Scott Spark 920 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,5 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Belcarra Regular 2.0 CRMO rails
|
|
Headset
|
Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm
|
|
Seatpost
|
Syncros Duncan Dropper 2.0 Remote 31.6mm / S size 100mm / M, L & XL 125mm
|
|
Handlebar
|
Syncros Fraser 1.5 / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano SLX BR-M7100
425 (BL-M7100) g
Hydraulic disc brake
2 piston
|
|
|
|
|
Crankset
|
SRAM GX Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW dropouts for Boost 12x148mm 2.6 tire compatible / TBC Trunnion box construction
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Rims
|
Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with Tool
|
|---|---|
|
Tires
|
Maxxis Rekon / 2.4" / 120TPI Kevlar Bead Tubeless Ready / EXO 3C maxx Terra
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
648,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
48,0
|
48,0
|
48,0
|
48,0
|
|
g
Trail
|
100,2
|
100,2
|
100,2
|
100,2
|
|
h
Wheelbase
|
1114,6
|
1144,6
|
1175,8
|
1196,9
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
43,0
|
43,0
|
43,0
|
43,0
|
|
k
Stack height
|
586,1
|
586,1
|
595,4
|
604,6
|
|
l
Reach
|
395,7
|
425,7
|
453,0
|
470,3
|
|
m
Standover height
|
731,0
|
739,0
|
753,0
|
771,0
|
|
x
Bottom bracket height
|
327,0
|
327,0
|
327,0
|
327,0
|
|
y
Front center
|
687,0
|
717,0
|
748,0
|
769,0
|
