Scott Spark 930 2022

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

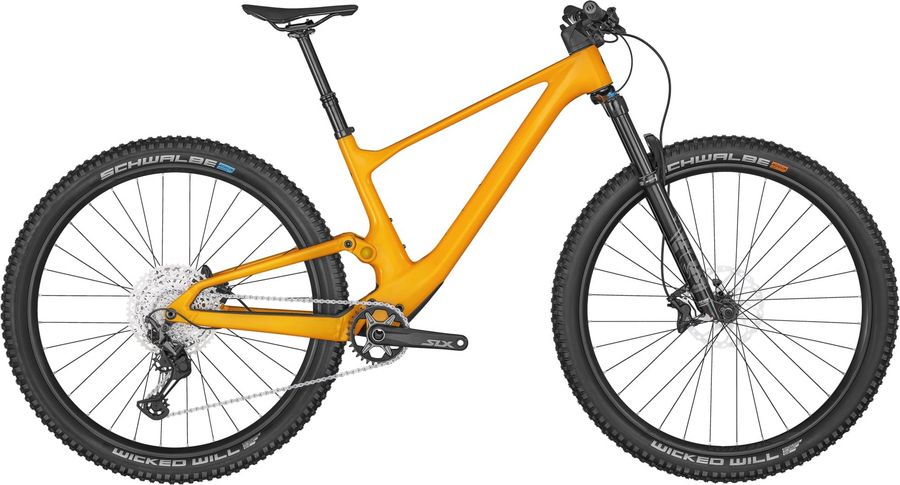

Scott Spark 930 2022

About the Scott Spark 930 2022

The Scott Spark 930 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Scott Spark 930 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros DC 2.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros Tofino 2.0 Regular CRMO rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost
Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L & XL size 150mm
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Pro lock-on grips
Discs
Shimano SM-RT64 CL / F&R 180mm
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano SLX FC-M7120-1 / Hollowtech 2 55mm CL / 32T
Shifter
Shimano Deore SL-M6100-IR / Rapidfire Plus Ispec EV clamp
Bottom bracket
Shimano BB-MT500 / shell 41x92mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Spark Carbon HMF Mainframe with Alloy 6011 Swingarm Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Rear suspension
Fox NUDE Trunnion
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Syncros X-30SE / 32H / 30mm Tubeless ready
Tires
Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula CL-148M / 12x148mm / Micro Spline Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Front hub
Formula CL-811 / 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
415,0
440,0
490,0
540,0
b
Seat tube angle
75,7º
75,9º
76,4º
76,7º
c
Top tube length
559,0
587,0
611,0
639,0
d
Head tube length
90,0
90,0
105,0
115,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
f
Rake
42,0
41,0
38,0
35,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1143,0
1172,0
1203,0
1234,0
i
Chainstay length
435,5
435,5
435,5
435,5
j
Bottom bracket drop
43,5
43,5
43,5
43,5
k
Stack height
605,5
605,5
615,7
625,0
l
Reach
408,0
438,0
468,0
498,0
m
Standover height
757,0
765,0
776,0
799,0
x
Bottom bracket height
331,5
331,5
331,5
331,5
y
Front center
711,0
740,0
771,0
802,0
