Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
120mm
Rear travel
120mm

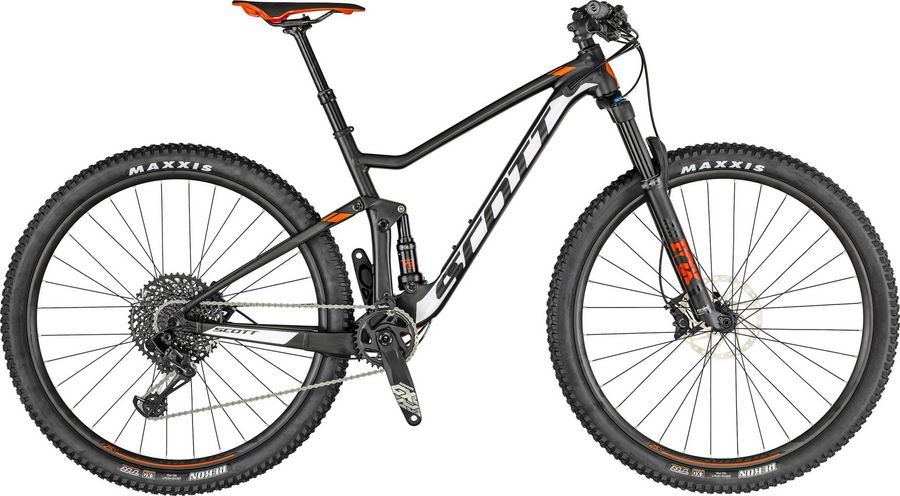

About the Scott Spark 940 2019
The Scott Spark 940 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XR2.0 / CROM rails
|
|
Headset
|
Syncros Pro Press Fit / Tapered 1.5"-1 1/8" OD 50/61mm / ID 44/55mm
|
|
Seatpost
|
Syncros Dropper 2.0 Remote 31.6mm / S size 100mm / M, L & XL 120mm
|
|
Handlebar
|
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM GX Eagle DUB Boost 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Spark 3 Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / Boost 12x148mm 2.6 tire compatible
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rims
|
Syncros X-25S / 32H / 25mm / Sleeve Joint Tubeless ready
|
|---|---|
|
Tires
|
Maxxis Rekon / 2.4" / 60TPI Kevlar Bead TR Tubeless Ready / EXO
|
|
Spokes
|
Stainless Black 15G / 1.8mm
|
|
Rear hub
|
Formula CL14811 / Boost 12x148mm / XD
|
|
Front hub
|
Formula CL811 / 15x110mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
648,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
48,0
|
48,0
|
48,0
|
48,0
|
|
g
Trail
|
100,2
|
100,2
|
100,2
|
100,2
|
|
h
Wheelbase
|
1114,6
|
1144,6
|
1175,8
|
1196,9
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
43,0
|
43,0
|
43,0
|
43,0
|
|
k
Stack height
|
586,1
|
586,1
|
595,4
|
604,6
|
|
l
Reach
|
395,7
|
425,7
|
453,0
|
470,3
|
|
m
Standover height
|
731,0
|
739,0
|
753,0
|
771,0
|
|
x
Bottom bracket height
|
327,0
|
327,0
|
327,0
|
327,0
|
|
y
Front center
|
687,0
|
717,0
|
748,0
|
769,0
|
