Scott Spark 940 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,7 kg
Front travel
120mm
Rear travel
120mm

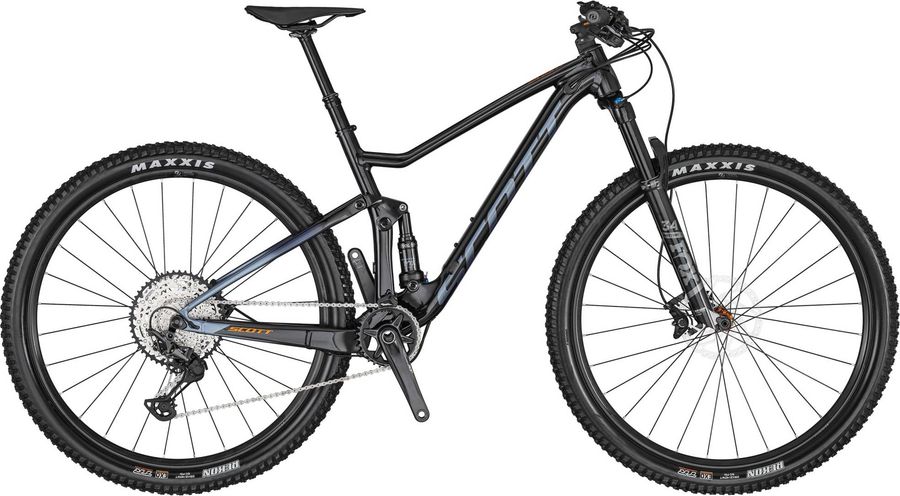

Scott Spark 940 2020

About the Scott Spark 940 2020

The Scott Spark 940 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,7 kg.

Features

The Scott Spark 940 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cap / 31.8mm / 1 1/8"
Saddle
Syncros Belcarra Regular 2.0 CRMO rails
Headset
Syncros Pro Press Fit / Tapered 1.5"-1 1/8" OD 50/61mm / ID 44/55mm
Seatpost
Syncros Duncan Dropper 2.0 Remote 31.6mm / S size 100mm / M, L & XL 125mm
Handlebar
Syncros Fraser 2.0 / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XT FC-M8100-1 / Hollowtech 2 32T
Shifter
Shimano SLX SL-M7100-R / Rapidfire Plus
Chain guide
SCOTT custom
Bottom bracket
Shimano BB-MT500 / shell 41x92mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Spark 3 Alloy SL 6011 custom butted Hydroformed tubes tapered Headtube / BB92 / Boost 12x148mm 2.6 tire compatible
Rear suspension
Fox NUDE Trunnion
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / MS Driver Syncros Axle w/Removable Lever with Tool
Tires
Maxxis Rekon / 2.4" / 60TPI Kevlar Bead Tubeless Ready / EXO

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
648,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,2º
67,2º
67,2º
67,2º
f
Rake
48,0
48,0
48,0
48,0
g
Trail
100,2
100,2
100,2
100,2
h
Wheelbase
1114,6
1144,6
1175,8
1196,9
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
43,0
43,0
43,0
43,0
k
Stack height
586,1
586,1
595,4
604,6
l
Reach
395,7
425,7
453,0
470,3
m
Standover height
731,0
739,0
753,0
771,0
x
Bottom bracket height
327,0
327,0
327,0
327,0
y
Front center
687,0
717,0
748,0
769,0
