BikeWise

Scott Spark 950 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,7 kg
Front travel
120mm
Rear travel
120mm
Scott Spark 950 2018

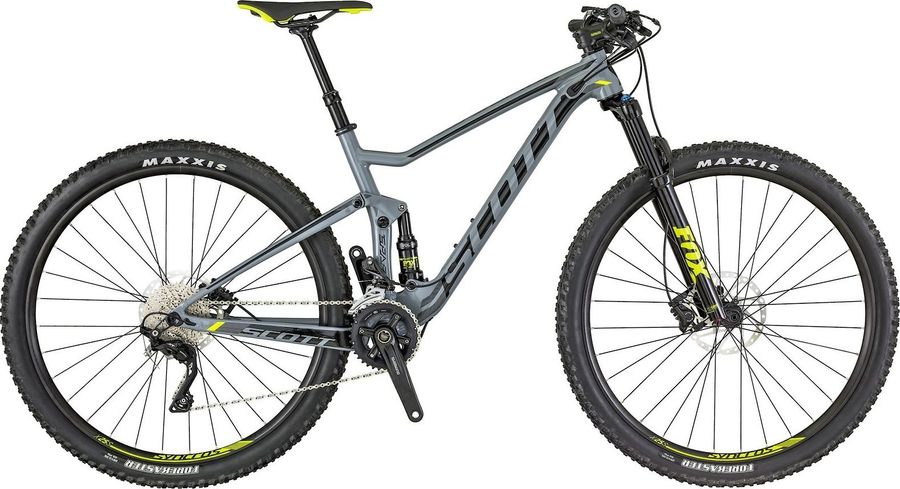

About the Scott Spark 950 2018

The Scott Spark 950 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,7 kg.

Features

The Scott Spark 950 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Syncros Pro Lock-on
Components
Steam
Syncros, alloy 6061, 6° angle, 31.8mm clamp
Saddle
Syncros XR2.5
Headset
Syncros Comp Press Fit
Seatpost
Syncros Dropper 2.0, 100mm drop (S), 120mm drop (M-XL)
Handlebar
Syncros T-Bar, alloy 6061, 740mm width, 9° sweep, T-shape flat
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano FC-MT500-B2-10
Shifter
Shimano Deore SL-M6000-I, Rapidfire Plus, 11-speed
Bottom bracket
Shimano BB-MT500-PA, shell 41mm x 92mm
Front derailleur
Shimano Deore FD-M6020-D, side swing
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminum
Front suspension
Fox 32 Float Rhythm
Rear suspension
Fox Float Performance EVOL
Wheels
Rims
Syncros X-25S, 25mm width, tubeless ready, 32 hole, sleeve joint
Tires
Maxxis Forekaster, 2.35" Dual Compound 60tpi kevlar bead
Spokes
Stainless Black 15G, 1.8mm
Rear hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm, XD driver
Front hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano FH-M6010-B CL, Boost 12mm x 148mm, XD driver

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
568,0
598,0
628,0
648,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,2º
67,2º
67,2º
67,2º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1114,6
1144,6
1175,8
1196,9
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
47,0
47,0
47,0
47,0
k
Stack height
586,1
586,1
595,4
604,6
l
Reach
395,7
425,7
453,0
470,3
m
Standover height
731,0
739,0
753,0
771,0
x
Bottom bracket height
327,0
327,0
327,0
327,0
y
Front center
-
-
-
-
