Scott Spark 950 2022

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

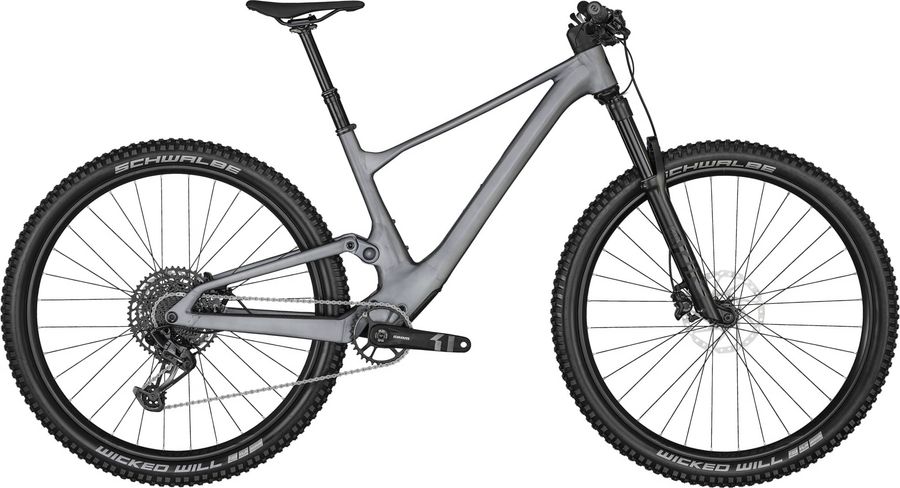

Scott Spark 950 2022

About the Scott Spark 950 2022

The Scott Spark 950 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Scott Spark 950 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Syncros DC 3.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros Tofino 2.5 Regular
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost
Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L & XL size 150mm
Handlebar
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Pro lock-on grips
Discs
Shimano SM-RT64 CL / F&R 180mm
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
SRAM X1 Eagle DUB 55mm CL / 32T
Shifter
SRAM NX Eagle Trigger
Bottom bracket
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM SX PG1210
Frameset
Frame
Spark Alloy SL 6011 Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Rear suspension
RockShox NUDE RL3 Trunnion
Wheels
Rims
Syncros X-30SE / 32H / 30mm
Tires
Schwalbe Wicked Will 29x2.4" Performance / TLR / Foldable / Addix
Spokes
Stainless Black 15G / 1.8mm
Rear hub
Formula CL-148S / 12x148mm Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Front hub
Formula CL-811 / 15x110mm

Geometry

Size SM MD LG XL
a
Seat tube length
415,0
440,0
490,0
540,0
b
Seat tube angle
75,7º
75,9º
76,4º
76,7º
c
Top tube length
559,0
587,0
611,0
639,0
d
Head tube length
90,0
90,0
105,0
115,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
f
Rake
42,0
41,0
38,0
35,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1143,0
1172,0
1203,0
1234,0
i
Chainstay length
435,5
435,5
435,5
435,5
j
Bottom bracket drop
43,5
43,5
43,5
43,5
k
Stack height
605,5
605,5
615,7
625,0
l
Reach
408,0
438,0
468,0
498,0
m
Standover height
757,0
765,0
776,0
799,0
x
Bottom bracket height
331,5
331,5
331,5
331,5
y
Front center
711,0
740,0
771,0
802,0
