Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
120mm
Rear travel
120mm

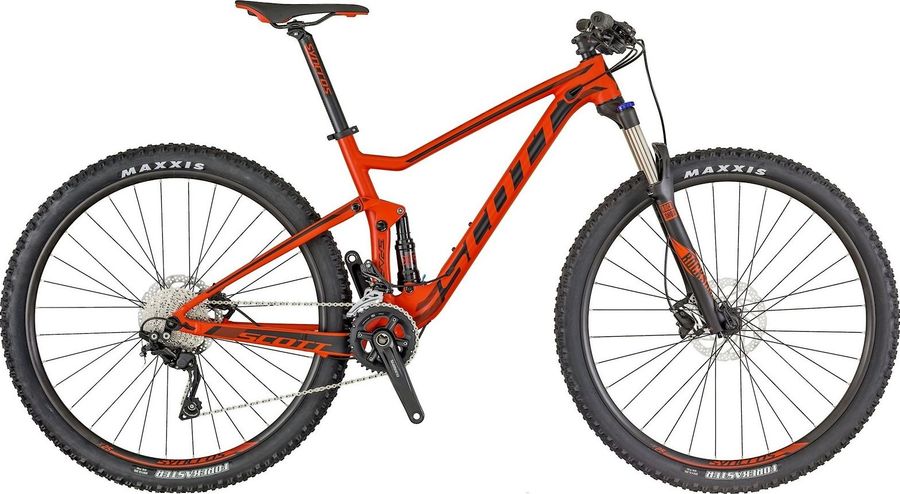

About the Scott Spark 970 2018
The Scott Spark 970 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 22 gears (2x11). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,2 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros, alloy 6061, 6° angle, 31.8mm clamp
|
|---|---|
|
Saddle
|
Syncros XR2.5
|
|
Headset
|
Syncros OE Press Fit
|
|
Seatpost
|
Syncros, 400mm length
|
|
Handlebar
|
Syncros T-Bar, alloy 6061, 740mm width, 9° sweep, T-shape flat
|
|
Brake lever
|
Shimano M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-MT500-B2-10, Boost
|
|---|---|
|
Shifter
|
Shimano Deore SL-M6000-I, Rapidfire Plus, 11-speed
|
|
Bottom bracket
|
Shimano BB-MT500-PA, shell 41mm x 89.5mm
|
|
Front derailleur
|
Shimano Deore FD-M6020-D, side swing
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Deore RD-M6000-SGS
SGS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
RockShox Judy Silver RL
|
|
Rear suspension
|
X-Fusion O2 RL
|
|
Rims
|
Syncros X-25, 25mm width, tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Maxxis Forekaster, 2.35" 60tpi
|
|
Spokes
|
Stainless Black 15G, 1.8mm
|
|
Rear hub
|
Front: Formula CL811, Boost 15mm x 110mm, Rear: Formula CT1702, 5mm x 141mm
|
|
Front hub
|
Front: Formula CL811, Boost 15mm x 110mm, Rear: Formula CT1702, 5mm x 141mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
568,0
|
598,0
|
628,0
|
648,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1114,6
|
1144,6
|
1175,8
|
1196,9
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
47,0
|
47,0
|
|
k
Stack height
|
586,1
|
586,1
|
595,4
|
604,6
|
|
l
Reach
|
395,7
|
425,7
|
453,0
|
470,3
|
|
m
Standover height
|
731,0
|
739,0
|
753,0
|
771,0
|
|
x
Bottom bracket height
|
327,0
|
327,0
|
327,0
|
327,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
