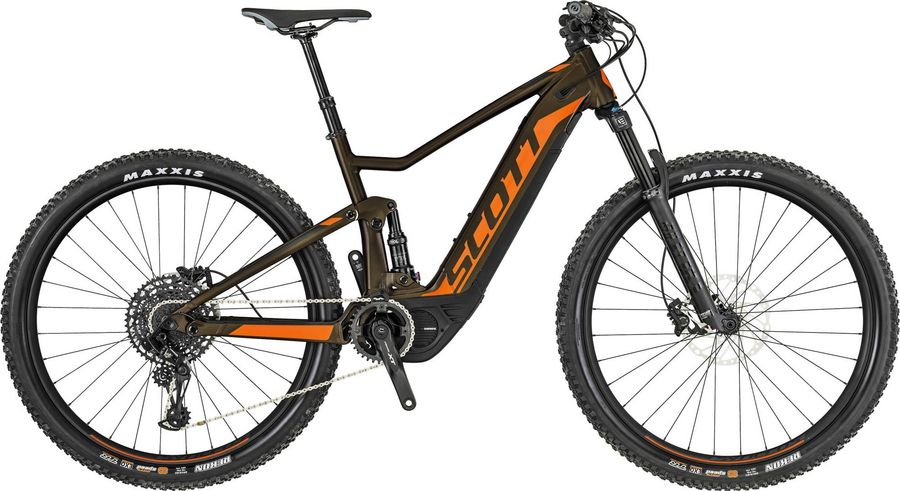

Scott Spark eRide 920 2020
The Scott Spark eRide 920 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm
About the Scott Spark eRide 920 2020
The Scott Spark eRide 920 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL2.0 / 6061 Alloy integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XM2.5
|
|
Headset
|
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
|
|
Seatpost
|
Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm
|
|
Handlebar
|
Syncros FL2.0 Steps mini Riser / Alloy 6061D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
|
|
Brake lever
|
Shimano BL-MT501
|
|
Brakes
|
Shimano BR-MT520
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano STEPS FC-M8050 / 165mm / 34T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Single Click
|
|
Chain guide
|
SCOTT custom
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 120mm travel / Shimano E-8000 Int. DT Battery Tapered Headtube E2, Central Kickstand Mount
|
|---|---|
|
Front suspension
|
Fox 34 Rhythm
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
|
|---|---|
|
Tires
|
Front & Rear: Maxxis Rekon / 29x2.6" / 120TPI Kevlar Bead EXO + SilkShield / TR Tubeless ready 3C Maxx Terra
|
|
Spokes
|
Stainless Black
|
|
Rear hub
|
Shimano FH-MT400-B CL / Boost 12x148mm
|
|
Front hub
|
Shimano HB-MT400-B CL / 15x110mm
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
410,0
|
440,0
|
440,0
|
490,0
|
490,0
|
540,0
|
540,0
|
|
b
Seat tube angle
|
74,5º
|
73,8º
|
74,5º
|
73,9º
|
74,5º
|
73,9º
|
74,5º
|
73,9º
|
|
c
Top tube length
|
573,0
|
574,8
|
598,0
|
599,8
|
623,0
|
624,9
|
643,0
|
644,9
|
|
d
Head tube length
|
125,0
|
125,0
|
125,0
|
125,0
|
135,0
|
135,0
|
145,0
|
145,0
|
|
e
Head tube angle
|
65,6º
|
65,0º
|
66,0º
|
65,4º
|
66,0º
|
65,4º
|
66,0º
|
65,4º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
109,6
|
120,9
|
106,7
|
117,8
|
106,7
|
117,7
|
106,7
|
117,6
|
|
h
Wheelbase
|
1186,7
|
1188,3
|
1207,0
|
1208,6
|
1233,6
|
1235,1
|
1255,0
|
1256,6
|
|
i
Chainstay length
|
453,0
|
455,2
|
453,0
|
455,2
|
453,0
|
455,2
|
453,0
|
455,2
|
|
j
Bottom bracket drop
|
18,0
|
26,0
|
18,0
|
26,1
|
18,0
|
26,2
|
18,0
|
26,3
|
|
k
Stack height
|
595,6
|
600,1
|
597,8
|
602,5
|
607,0
|
611,8
|
616,1
|
621,0
|
|
l
Reach
|
405,9
|
399,3
|
430,2
|
423,8
|
452,7
|
446,3
|
470,2
|
463,8
|
|
m
Standover height
|
745,8
|
761,5
|
746,8
|
762,2
|
779,0
|
793,9
|
805,8
|
820,4
|
|
x
Bottom bracket height
|
342,0
|
351,0
|
342,0
|
350,9
|
342,0
|
350,8
|
342,0
|
350,8
|
|
y
Front center
|
734,0
|
734,0
|
755,0
|
755,0
|
781,0
|
781,0
|
803,0
|
803,0
|
