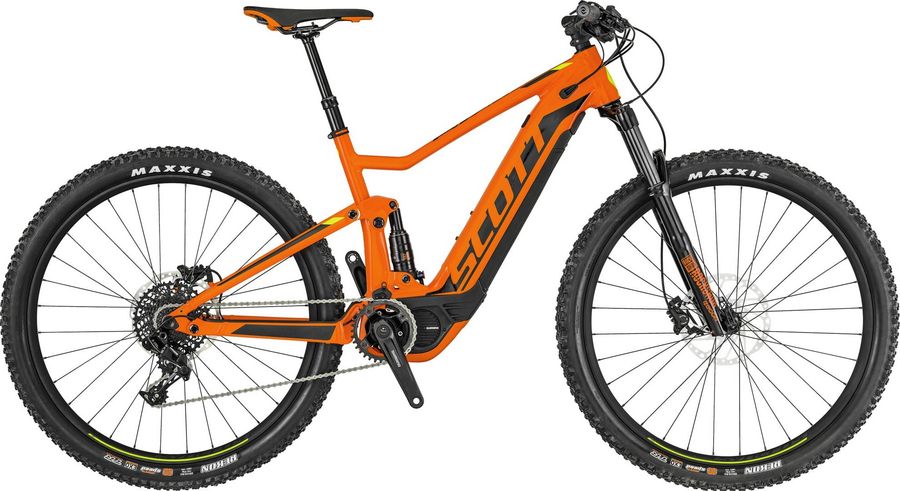

Scott Spark eRide 930 2020

E-Bike
MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm
Scott Spark eRide 930 2020

About the Scott Spark eRide 930 2020

The Scott Spark eRide 930 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Scott Spark eRide 930 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros FL2.0 / 6061 Alloy integrated Top Cup / 31.8mm / 6° / 1 1/8"
Saddle
Syncros XM2.5
Headset
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Seatpost
Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm
Handlebar
Syncros FL2.0 Steps mini Riser / Alloy 6061D.B. 12mm rise / 9° / 760mm Syncros Pro lock-on grips
Brake lever
Shimano BL-MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano STEPS FC-E8000 / 165mm / 34T
Shifter
SRAM NX1 Trigger
Chain guide
SCOTT custom
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 120mm travel / Shimano E-8000 Int. DT Battery Tapered Headtube E2, Central Kickstand Mount
Rear suspension
X-Fusion NUDE Trunnion
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
Tires
Front & Rear: Maxxis Rekon / 29x2.6" / 60TPI Kevlar Bead EXO / TR Tubeless ready / Dual
Spokes
Stainless Black
Rear hub
Shimano FH-MT400-B CL / Boost 12x148mm
Front hub
Shimano HB-MT400-B CL / 15x110mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
440,0
440,0
490,0
490,0
540,0
540,0
b
Seat tube angle
74,5º
73,8º
74,5º
73,9º
74,5º
73,9º
74,5º
73,9º
c
Top tube length
573,0
574,8
598,0
599,8
623,0
624,9
643,0
644,9
d
Head tube length
125,0
125,0
125,0
125,0
135,0
135,0
145,0
145,0
e
Head tube angle
65,6º
65,0º
66,0º
65,4º
66,0º
65,4º
66,0º
65,4º
f
Rake
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
g
Trail
109,6
120,9
106,7
117,8
106,7
117,7
106,7
117,6
h
Wheelbase
1186,7
1188,3
1207,0
1208,6
1233,6
1235,1
1255,0
1256,6
i
Chainstay length
453,0
455,2
453,0
455,2
453,0
455,2
453,0
455,2
j
Bottom bracket drop
18,0
26,0
18,0
26,1
18,0
26,2
18,0
26,3
k
Stack height
595,6
600,1
597,8
602,5
607,0
611,8
616,1
621,0
l
Reach
405,9
399,3
430,2
423,8
452,7
446,3
470,2
463,8
m
Standover height
745,8
761,5
746,8
762,2
779,0
793,9
805,8
820,4
x
Bottom bracket height
342,0
351,0
342,0
350,9
342,0
350,8
342,0
350,8
y
Front center
734,0
734,0
755,0
755,0
781,0
781,0
803,0
803,0
