Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,64 kg
Front travel
120mm
Rear travel
120mm

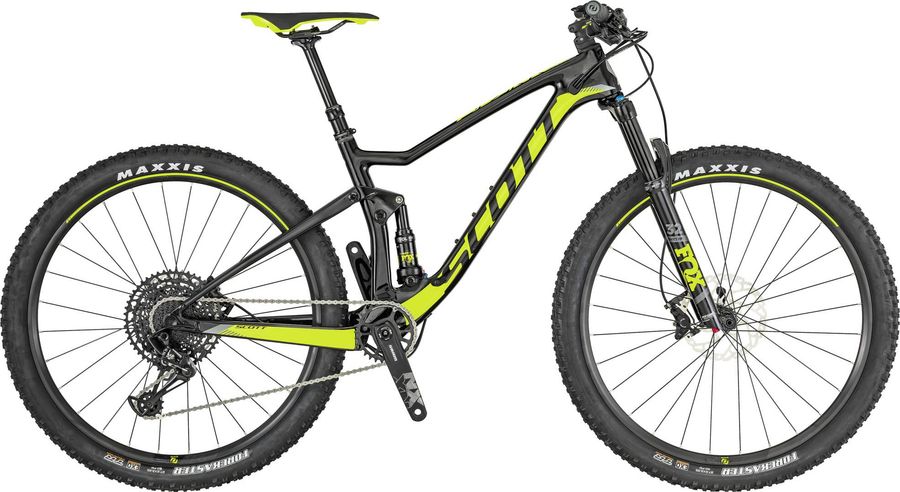

About the Scott Spark Pro 700 2019
The Scott Spark Pro 700 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,64 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros XR2.0 / CROM rails
|
|
Headset
|
Syncros Pro Drop in / Tapered 1.5"-1 1/8" bearing diameter size 42mm and 52mm
|
|
Seatpost
|
Syncros Dropper 2.0 Remote 31.6mm / S size 100mm
|
|
Handlebar
|
Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 700mm Syncros Pro lock-on grips
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM NX Eagle DUB Boost 30T
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger
|
|
Chain guide
|
SCOTT custom
|
|
Bottom bracket
|
SRAM DUB PF integrated / shell 41x92mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Spark 27.5" Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW dropouts for Boost 12x148mm TBC Trunnion box construction
|
|---|---|
|
Rear suspension
|
Fox NUDE Trunnion
|
|
Front suspension
|
Fox 32 Float Rhythm
|
|
Rims
|
Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / Shimano / DT RWS
|
|---|---|
|
Tires
|
Maxxis Forekaster / 27.5x2.35" / 60TPI Kevlar Bead TR Tubeless Ready / EXO / DualComp
|
Geometry
| Size | SM |
|---|---|
|
a
Seat tube length
|
410,0
|
|
b
Seat tube angle
|
73,8º
|
|
c
Top tube length
|
568,0
|
|
d
Head tube length
|
100,0
|
|
e
Head tube angle
|
67,0º
|
|
f
Rake
|
44,0
|
|
g
Trail
|
101,4
|
|
h
Wheelbase
|
1108,2
|
|
i
Chainstay length
|
421,0
|
|
j
Bottom bracket drop
|
26,0
|
|
k
Stack height
|
561,9
|
|
l
Reach
|
402,7
|
|
m
Standover height
|
718,0
|
|
x
Bottom bracket height
|
325,5
|
|
y
Front center
|
688,0
|
