Scott Spark RC 900 2020

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,5 kg
Front travel
100mm
Rear travel
100mm

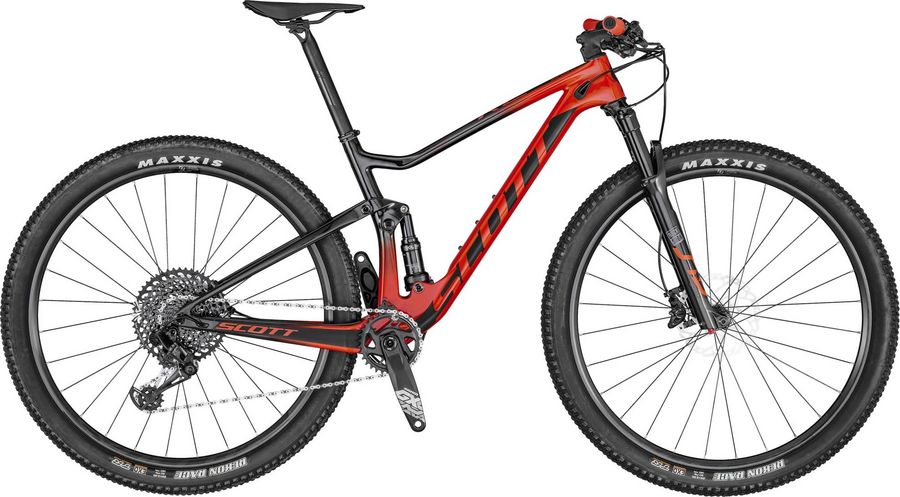

Scott Spark RC 900 2020

About the Scott Spark RC 900 2020

The Scott Spark RC 900 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11,5 kg.

Features

The Scott Spark RC 900 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros XR1.5 -8° Integrated Spacer & Top Cap 2014 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros Belcarra Regular 2.0 CRMO rails
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm
Seatpost
Syncros Duncan 1.5 / 10mm offset 31.6x400mm
Handlebar
Syncros Fraser 1.5 / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM GX Eagle DUB Boost 32T
Shifter
SRAM GX Eagle Trigger
Chain guide
SCOTT custom
Bottom bracket
SRAM DUB PF integrated / shell 41x92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Spark RC Carbon / IMP technology / HMF 1x optimized / BB92 /Carbon swingarm SW dropouts for Boost 12x148mm TBC Trunnion Box Construction
Rear suspension
Fox NUDE Trunnion
Front suspension
RockShox SID Select+ DebonAir 1703 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SELP-C1
Name
SID Select+
Spring
DebonAir
Travel (mm)
100mm, 110mm, 120mm
Upper tube type
35mm tapered wall aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1703
Wheel size
29"
Wheels
Rims
Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with Tool
Tires
Maxxis Rekon Race / 2.35" / 60TPI Kevlar Bead Tubeless Ready / EXO

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
563,0
593,0
623,0
643,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
90,9
90,9
90,9
90,9
h
Wheelbase
1090,7
1120,7
1151,6
1172,6
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
50,5
50,5
50,5
50,5
k
Stack height
579,9
579,9
589,2
598,5
l
Reach
392,5
422,5
449,8
467,1
m
Standover height
732,0
730,0
749,0
780,0
x
Bottom bracket height
319,5
319,5
319,5
319,5
y
Front center
668,0
697,0
728,0
749,0
