Scott Spark RC Team 2022

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

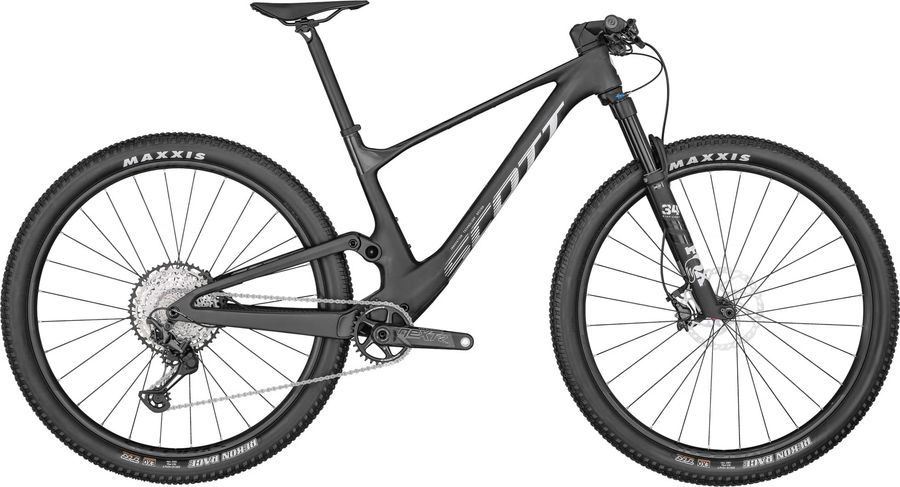

Scott Spark RC Team 2022

About the Scott Spark RC Team 2022

The Scott Spark RC Team 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Scott Spark RC Team 2022 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Syncros XC 2.0 Syncros Cable Integration System -12° rise / 6061 Alloy / 31.8mm / 1 1/8"
Saddle
Syncros Belcarra Regular 2.0 CRMO rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost
Syncros Duncan 2.0 / 10mm offset 31.6x400mm
Handlebar
Syncros Fraser 2.0 XC Alloy 6061 D.B. Flat Bar / 8° / 740mm Syncros Pro lock-on grips
Discs
Shimano SM-RT66 / 6 Bolt / 180/F and 160/R
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Next R Carbon crankarm 143 Spindle / 55mm CL / DM32T SHI
Shifter
Shimano XT SL-M8100-IR / Rapidfire Plus Ispec EV clamp
Bottom bracket
Race Face BB92 Ø30mm / Double Row / Ext. Seal
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Front suspension
Fox 34 Float Performance
Rear suspension
Fox NUDE Trunnion
Wheels
Rims
Syncros Silverton 2.5-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready rim / 28H / Micro Spline Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Tires
Maxxis Rekon Race / 29x2.4" / 60TPI Foldable Bead Tubeless Ready / EXO

Geometry

Size SM MD LG XL
a
Seat tube length
415,0
440,0
490,0
540,0
b
Seat tube angle
75,9º
76,1º
76,6º
76,9º
c
Top tube length
560,0
588,0
612,0
640,0
d
Head tube length
90,0
90,0
105,0
115,0
e
Head tube angle
67,2º
67,2º
67,2º
67,2º
f
Rake
45,0
45,0
40,0
47,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1127,0
1157,0
1188,0
1229,0
i
Chainstay length
435,5
435,5
435,5
435,5
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
600,5
600,5
614,0
623,0
l
Reach
409,0
439,0
469,0
499,0
m
Standover height
756,0
763,0
774,0
797,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
695,0
725,0
756,0
797,0
