Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

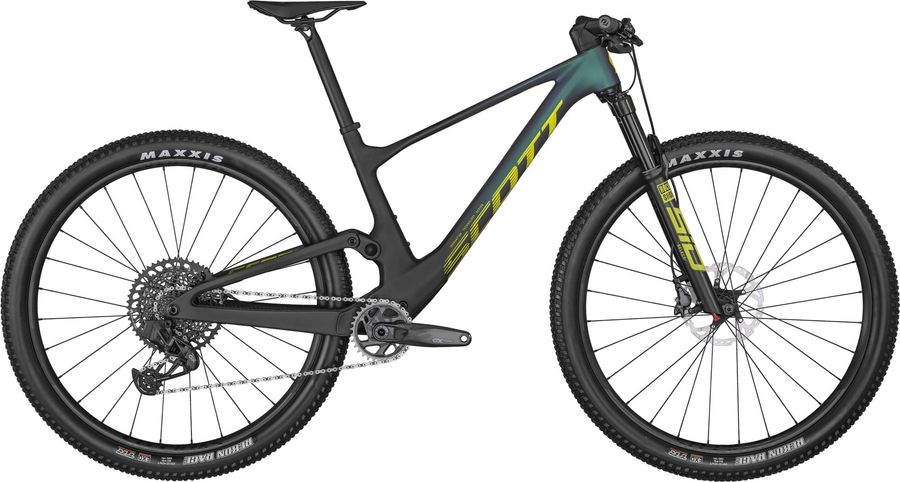

About the Scott Spark RC Team Issue AXS 2022
The Scott Spark RC Team Issue AXS 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Syncros XC 1.5 Syncros Cable Integration System -12° rise / 7050 Alloy / 31.8mm / 1 1/8"
|
|---|---|
|
Saddle
|
Syncros Belcarra Regular 1.5 Titanium rails
|
|
Headset
|
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
|
|
Seatpost
|
Syncros Duncan 1.5 / 10mm offset 31.6x400mm
|
|
Handlebar
|
Syncros Fraser 1.5 XC Alloy 7075 D.B. Flat Bar / 8° / 740mm Syncros Pro lock-on grips
|
|
Discs
|
Shimano SM-RT76 / 6 Bolt / 180/F and 160/R
|
|
Brakes
|
Shimano Deore XT BR-M8100
392 (BL-M8100) g
Hydraulic disc brake
2 piston
|
|
BL-T8100 |
|
|
Crankset
|
SRAM GX Eagle DUB 55mm CL / 32T
|
|---|---|
|
Shifter
|
SRAM GX Eagle AXS Rocker Controller
|
|
Bottom bracket
|
SRAM DUB PF 92 MTB Wide / shell 41x92mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle AXS
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Frame
|
Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
|
|---|---|
|
Rear suspension
|
RockShox NUDE RL3 Trunnion
|
|
Front suspension
|
RockShox SID Select+
DebonAir
1703 g
|
|
|
|
|
Rims
|
Syncros Silverton 2.0-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
|
|---|---|
|
Tires
|
Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
440,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
75,9º
|
76,1º
|
76,6º
|
76,9º
|
|
c
Top tube length
|
560,0
|
588,0
|
612,0
|
640,0
|
|
d
Head tube length
|
90,0
|
90,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
67,2º
|
67,2º
|
67,2º
|
67,2º
|
|
f
Rake
|
45,0
|
45,0
|
40,0
|
47,0
|
|
g
Trail
|
115,0
|
115,0
|
115,0
|
115,0
|
|
h
Wheelbase
|
1127,0
|
1157,0
|
1188,0
|
1229,0
|
|
i
Chainstay length
|
435,5
|
435,5
|
435,5
|
435,5
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
600,5
|
600,5
|
614,0
|
623,0
|
|
l
Reach
|
409,0
|
439,0
|
469,0
|
499,0
|
|
m
Standover height
|
756,0
|
763,0
|
774,0
|
797,0
|
|
x
Bottom bracket height
|
330,0
|
330,0
|
330,0
|
330,0
|
|
y
Front center
|
695,0
|
725,0
|
756,0
|
797,0
|
