Scott Voltage YZ 0.1 2017
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
11,8 kg
Front travel
100mm

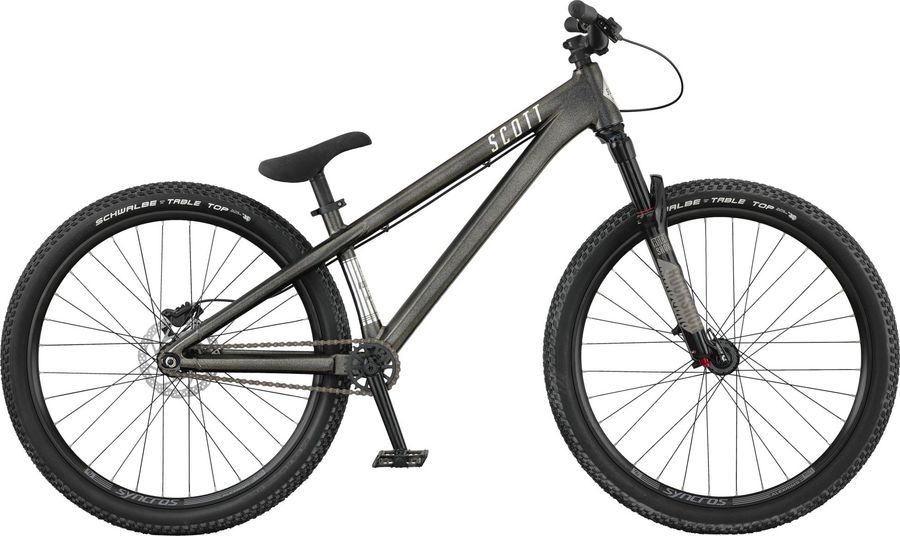

About the Scott Voltage YZ 0.1 2017
The Scott Voltage YZ 0.1 2017 is a Hardtail Mountain Bike with a alloy frame. Its features include e-thru axle e hydraulic disc brakes. The bike weighs approximately 11,8 kg.
Features
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Wellgo B107.N flat
|
|---|
|
Steam
|
Syncros XM1.5 35mm / 40mm / 0°
|
|---|---|
|
Saddle
|
Syncros Pivotal VL-7121
|
|
Headset
|
GW 1SI11015Z Integ.
|
|
Seatpost
|
Syncros Pivotal / 31.6mm
|
|
Handlebar
|
Syncros DJ1.5 35mm / 760mm / 40mm Rise Syncros Pro DH dual lock-on grips
|
|
Brake lever
|
Shimano BL-M396
|
|
Brakes
|
Shimano Alivio BR-M395
|
|
Crankset
|
SCOTT Cr-Mo 3-piece cranks 170mm / 25T Alloy BMX sprocket
|
|---|---|
|
Cassette
|
Sprocket / 12T
|
|
Bottom bracket
|
Jien-Yuan BB92 / 19mm Axle
|
|
Rear derailleur
|
Singlespeed
|
|
Chain
|
KMC Z51
|
|
Frame
|
Voltage A-Frame 26 Hydroformed tubing Super Stiff 6061 Alloy frame Disc Dropout, horizontal for 135x10mm singlespeed
|
|---|---|
|
Front suspension
|
RockShox Pike DJ
Solo Air
1839 g
|
|
|
|
|
Rims
|
Syncros MD25 Disc / 32H
|
|---|---|
|
Tires
|
Schwalbe Table Top Performance 67EPI / wire / 26x2.25
|
|
Spokes
|
Stainless 14G / black / 2.0mm
|
|
Rear hub
|
Formula DC42-N w/tracknut / singlespeed
|
|
Front hub
|
Formula DC-51 / 100x15mm / thru axle
|
Geometry
| Size | MD |
|---|---|
|
a
Seat tube length
|
315,0
|
|
b
Seat tube angle
|
71,0º
|
|
c
Top tube length
|
600,0
|
|
d
Head tube length
|
120,0
|
|
e
Head tube angle
|
68,5º
|
|
f
Rake
|
42,0
|
|
g
Trail
|
90,0
|
|
h
Wheelbase
|
1047,0
|
|
i
Chainstay length
|
380,0
|
|
j
Bottom bracket drop
|
15,0
|
|
k
Stack height
|
570,9
|
|
l
Reach
|
403,4
|
|
m
Standover height
|
702,0
|
|
x
Bottom bracket height
|
324,0
|
|
y
Front center
|
667,0
|
