Scott Voltage YZ 10 2018
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
13,8 kg
Front travel
100mm

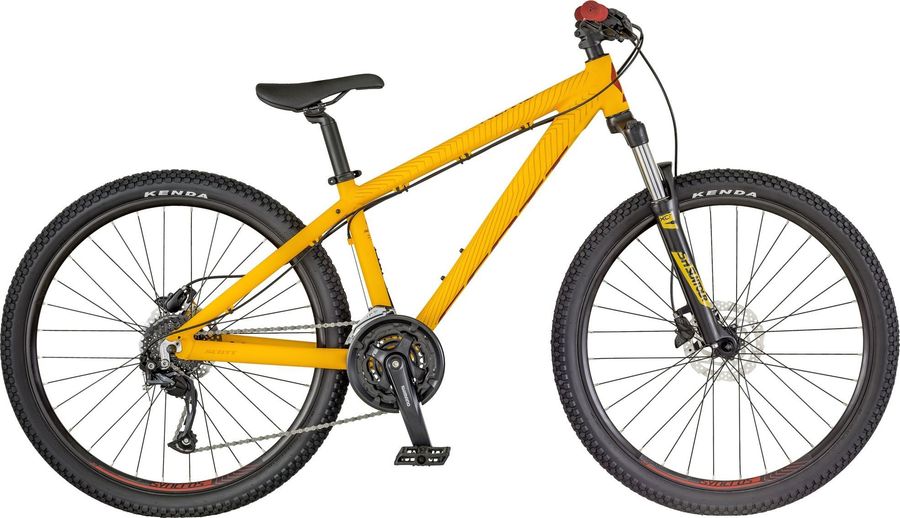

About the Scott Voltage YZ 10 2018
The Scott Voltage YZ 10 2018 is a Hardtail Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 13,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Wellgo B107N Black
|
|---|
|
Steam
|
HL TDS-C342 1 1/8" / +/-10°
|
|---|---|
|
Saddle
|
Syncros DJ3.0 / Steel rails
|
|
Headset
|
Ritchey LOGIC ZERO-OE
|
|
Seatpost
|
HL SP-C212 Alloy / 31.6mm
|
|
Handlebar
|
HL MTB- AL-325BT / Alloy 680mm / 20mm uprise
|
|
Brake lever
|
incl.
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-TY501 42x34x24 w/CG
|
|---|---|
|
Shifter
|
Shimano STEF 505 8R
|
|
Bottom bracket
|
Shimano BB-UN-100
|
|
Front derailleur
|
Shimano FD-TY700 / 34.9mm
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
Voltage YZ 6061 Alloy Hydroformed tubing Disc Dropout
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
Syncros X-20 Disc / 32H / black
|
|---|---|
|
Tires
|
Kenda K-905 26x2.3 / 30 TPI
|
|
Spokes
|
14 G / stainless / black
|
|
Rear hub
|
Formula DC-25-RQR
|
|
Front hub
|
Formula DC-19-FQR
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
370,0
|
410,0
|
460,0
|
510,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
538,0
|
548,0
|
558,0
|
568,0
|
583,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
135,0
|
150,0
|
|
e
Head tube angle
|
68,5º
|
69,0º
|
69,0º
|
69,5º
|
69,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
90,0
|
87,0
|
87,0
|
83,0
|
83,0
|
|
h
Wheelbase
|
1050,0
|
1050,0
|
1056,0
|
1061,0
|
1077,0
|
|
i
Chainstay length
|
418,0
|
418,0
|
418,0
|
418,0
|
418,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
566,0
|
578,0
|
587,0
|
604,0
|
618,0
|
|
l
Reach
|
375,0
|
376,0
|
378,0
|
383,0
|
394,0
|
|
m
Standover height
|
682,0
|
713,0
|
744,0
|
784,0
|
821,0
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
634,0
|
634,0
|
640,0
|
645,0
|
661,0
|
