BikeWise

Sense Impact Pro 2019

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,3 kg

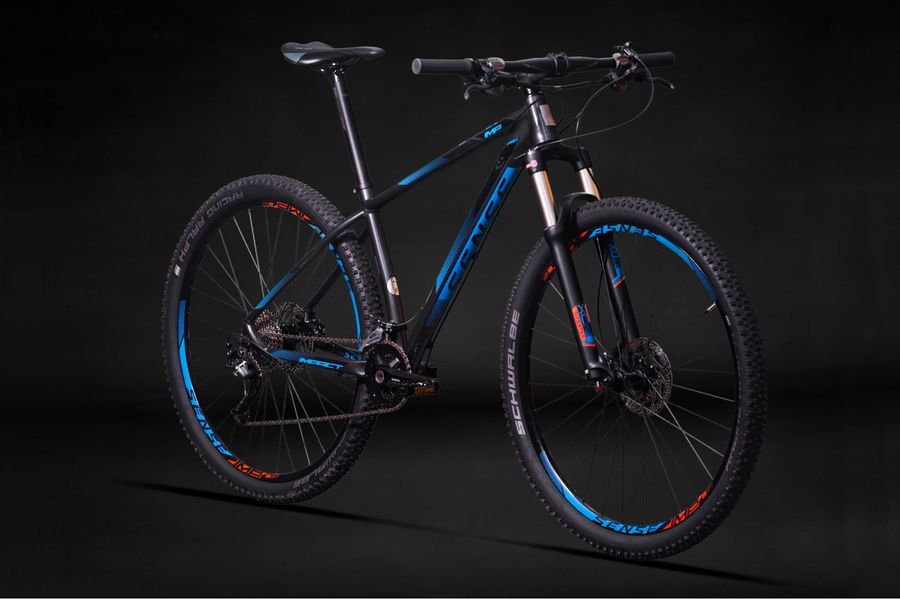

Sense Impact Pro 2019

About the Sense Impact Pro 2019

The Sense Impact Pro 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). The bike weighs approximately 13,3 kg.

Specifications

Acessories
Seat clamp
Sentec 35.0
Components
Brake lever
Shimano Acera BL-M425
Handlebar
Sense 31.8
Steam
Sentec RS2 31.8
Brakes
Shimano Acera BR-M425
Seatpost
Sentec RS2 31.6
Drivetrain
Shifter
Shimano Alivio SL-M4010
Front derailleur
Shimano Alivio FD-M4020
Action side swing
Cable route type front pull
Chain guide finish
Chrome plated
Chain guide material
Steel
Primary color
Series color
Compatible chain
HG 9-speed
front_clamp_band.finish
Painted
front_clamp_band.material
Steel
Inner link finish
Painted
Inner link material
Aluminum
Link bushings
4
Model
FD-M4020-M
Outer link finish
Painted
Outer link material
Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Aluminum
Stroke adjusting screw material
Stainless steel
Total capacity
14T
Crankset
Shimano Acera FC-MT210
Rear derailleur
Shimano Alivio RD-M4000
Chain
KMC X9
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Frameset
Frame
Sense Alumínio 6061
Front suspension
SR Suntour XCR 32 AIR
Wheels
Front hub
Shimano HB-M4050 Quick release
Axle material
Steel
Axle fixing method
Quick release
Brake type
Center lock disc brake
Hub shell color
Black
Quick release color
Black
Hub shell color
Silver
Quick release color
Silver
Without external serration disc rotor lock ring
Flange distance (mm)
60.2
Hub shell finish
Anodized
Hub shell material
Aluminum
Model
HB-M4050
Offset (mm)
5.6
Over locknut dimension (mm)
100
PCD left right (mm)
44/44
Quick release housing finish
Plated
Quick release housing material
Steel
Quick release lever finish
Painted
Quick release lever material
Aluminum
Quick release nut material
Resin & Steel
Seal
Labyrinth & Contact
Spoke hole
32H
36H
Rear hub
Shimano FH-M4050
Axle material
Steel
Axle fixing method
Quick release
Bearing cone
CBN
Brake type
Center lock disc brake
Hub shell color
Black
Quick release color
Black
Hub shell color
Silver
Quick release color
Black
Without external serration disc rotor lock ring
Flange diameter (mm)
53.8
Flange distance (mm)
57.4
Freehub body material
Steel
Hub shell finish
Anodized
Hub shell material
Aluminum
Without external serration disc rotor lock ring
Model
FH-M4050
Offset (mm)
6.6
Over locknut dimension (mm)
135
PCD left right (mm)
45/45
Quick release housing finish
Plated
Quick release housing material
Steel
Quick release lever finish
Painted
Quick release lever material
Aluminum
Quick release nut material
Steel + Resin
Seal freehub body
Contact
Seal
Labyrinth & Contact
Spoke hole
32H
36H
Tube
Chaoyang 29"
Tires
Schwalbe Racing Ralph

Geometry

Size S M L XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
73,5º
73,5º
73,5º
73,0º
c
Top tube length
550,73
592,0
615,0
638,0
d
Head tube length
100,0
100,0
120,0
120,0
e
Head tube angle
69,3º
69,3º
69,3º
69,3º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
600,0
600,0
620,0
620,0
l
Reach
373,0
414,27
431,76
448,5
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
