Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

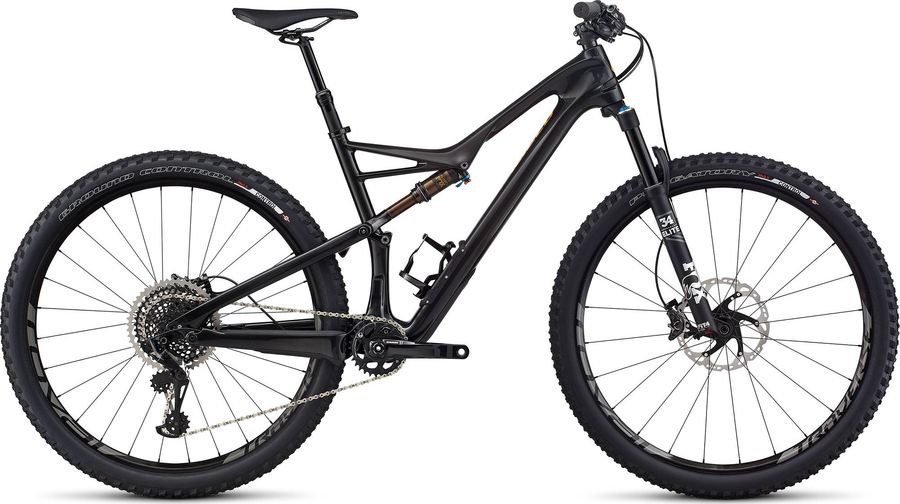

About the Specialized Camber Pro Carbon 29 2017
The Specialized Camber Pro Carbon 29 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|
|
Steam
|
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Henge Expert, hollow titanium rails, 143mm
|
|
Seatpost
|
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
|
|
Handlebar
|
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm width, 31.8mm
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
Custom SRAM XX1 Eagle, alloy, 30mm spindle, 49mm chainline, 30T, SRAM X-Sync, direct mount, 30T
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, trigger
|
|
Bottom bracket
|
SRAM PF30, OS press-in bearings
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, Concentric Pivot link, 12x142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
|
|---|---|
|
Rear suspension
|
Fox Float Factory
|
|
Front suspension
|
Fox 34 Performance Elite
|
|
Rims
|
Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h
|
|---|---|
|
Tires
|
Purgatory, Control casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
|
|
Spokes
|
DT Swiss Revolution
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
396,0
|
430,0
|
468,0
|
523,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
558,0
|
586,0
|
609,0
|
643,0
|
|
d
Head tube length
|
95,0
|
95,0
|
115,0
|
145,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
97,0
|
97,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1103,0
|
1131,0
|
1156,0
|
1193,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
42,0
|
42,0
|
42,0
|
42,0
|
|
k
Stack height
|
605,0
|
605,0
|
623,0
|
651,0
|
|
l
Reach
|
395,0
|
423,0
|
441,0
|
467,0
|
|
m
Standover height
|
728,0
|
731,0
|
748,0
|
762,0
|
|
x
Bottom bracket height
|
330,0
|
330,0
|
330,0
|
330,0
|
|
y
Front center
|
673,0
|
701,0
|
726,0
|
763,0
|
