BikeWise

Specialized Demo 8 I Carbon 2017

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

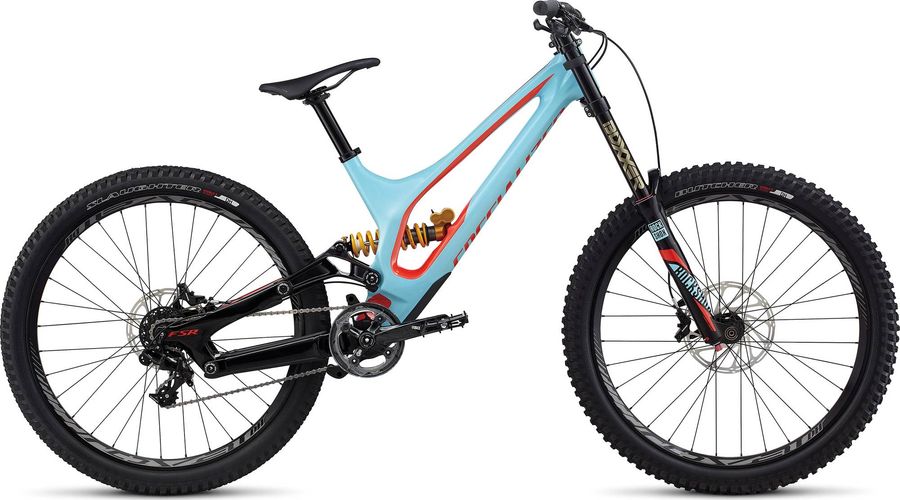

Specialized Demo 8 I Carbon 2017

About the Specialized Demo 8 I Carbon 2017

The Specialized Demo 8 I Carbon 2017 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include internal routing e hydraulic disc brakes.

Features

The Specialized Demo 8 I Carbon 2017 has 2 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Specialized Bennies, 6061 alloy body, sealed cartridge bearings, 4.5mm removable pins
Components
Steam
Specialized P.Series MTB, forged alloy, 4-bolt, 45mm
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Handlebar
Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 800mm, 31.8mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM Descendant, BB30, 7050 alloy arms, 165mm, SRAM 36T
Shifter
SRAM GX, 7-speed, trigger
Bottom bracket
SRAM BB30, 83mm
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
FACT 10m carbon, S3 Geometry, carbon front triangle, carbon link and seatstay, FACT IS construction, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
Ohlins TTX
Wheels
Rims
Roval 650b, alloy, 24mm inner width, 32h
Tires
Butcher, DH casing, 650bx2.5"", 60TPI, wire bead
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Rear hub
Specialized disc, 12x135mm spacing, sealed cartridge bearings, 32h
Front hub
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20mm thru-axle, 32h

Geometry

Size Short MD Long Long
a
Seat tube length
367,0
367,0
367,0
367,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
572,0
597,0
617,0
637,0
d
Head tube length
105,0
105,0
105,0
105,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1184,0
1209,0
1229,0
1249,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
615,0
615,0
615,0
615,0
l
Reach
396,0
421,0
441,0
461,0
m
Standover height
699,0
699,0
699,0
699,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
754,0
779,0
799,0
819,0
