Specialized Demo 8 I Carbon 2019

MTB Downhill
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

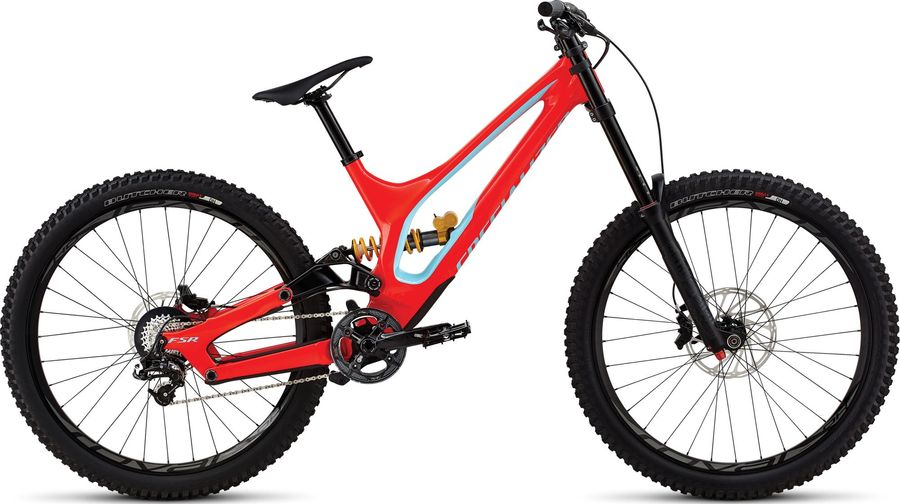

Specialized Demo 8 I Carbon 2019

About the Specialized Demo 8 I Carbon 2019

The Specialized Demo 8 I Carbon 2019 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10).

Specifications

Acessories
Pedals
Specialized Bennies
Components
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Cassette
SRAM PG-1030 10s
Cog finish cassete
Silver
Cog sizes
11-26t:11,12,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,15,17,19,22,25,28
11-32t 11,12,13,15,17,19,22,25,28,32
11-32t:11,12,14,15,17,19,22,25,28,32
11-36t:11,12,14,16,18,21,26,28,32,36
11-36t:11,13,15,17,19,22,25,28,32,36
Gearing
11-26t
11-28t
11-32t
11-36t
Model
CS-PG-1030-A1
Name
PG-1030 Cassette
Speed
10s
Technology cassete
PG
Shifter
SRAM X7
Chain
SRAM PC-1031
Chain connector
PowerLock
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links
Color inner link
Grey
Color outer link
Grey, Silver
Compat speed
10s
Inner link finish
Polished
Model
CN-1031-A1
Name
PC-1031 Chain
Outer link finish
Nickel, Polished
Pin variant
Solid Pin
Crankset
SRAM Descendant
Bottom bracket
SRAM BB30
BB frame interface
BB30
Bearing type
Ceramic, Standard
Crank interface
BB30
Cup material
n/a, Plastic
Model
BB-BB30-A1
Name
BB30 Bottom Bracket
Spindle diameter
30mm
Rear derailleur
SRAM GX
Frameset
Front suspension
RockShox Boxxer Team Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-TEAM-A2
Name
BoXXer Team
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Tires
Specialized Butcher DH

Geometry

Size Short M Long Long
a
Seat tube length
367,0
367,0
367,0
367,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
571,0
596,0
616,0
636,0
d
Head tube length
105,0
105,0
105,0
105,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1183,0
1208,0
1228,0
1248,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
614,0
614,0
614,0
614,0
l
Reach
395,0
420,0
440,0
460,0
m
Standover height
698,0
698,0
698,0
698,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
