Specialized Demo Expert 2022

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm
Price
$5,600.00

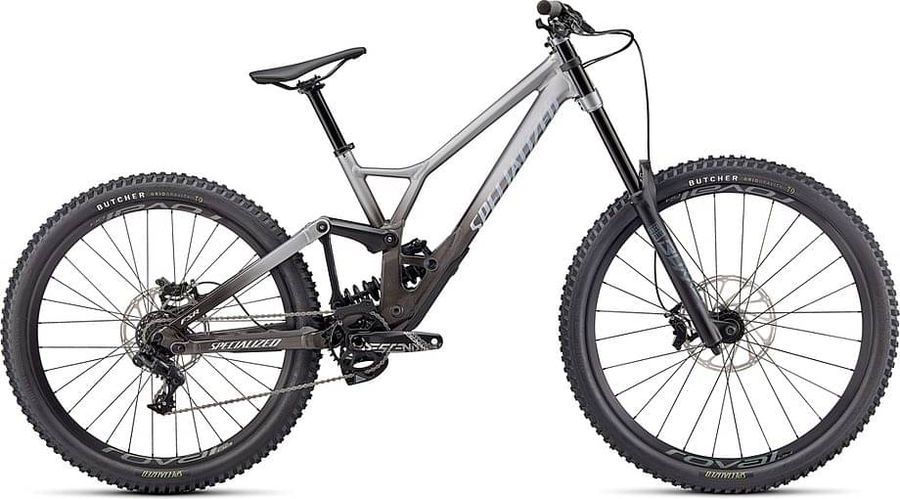

Specialized Demo Expert 2022

About the Specialized Demo Expert 2022

The Specialized Demo Expert 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include internal routing, boost 110 , and boost 148.

Features

The Specialized Demo Expert 2022 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Descendant 35mm Direct Mount Stem, 50mm length
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Brakes
SRAM Code RS
Drivetrain
Crankset
DESCENDANT DH, DUB, alloy, Direct mount ring, 165mm, 34T
Shifter
SRAM GX DH, trigger, 7-speed
Bottom bracket
SRAM DUB, 83mm
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM GX DH
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Front suspension
RockShox Boxxer Select DebonAir 2558 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-SEL-C2
Name
BoXXer Select
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2558
Wheel size
27.5", 29"
Wheels
Rims
Roval 29" Alloy DH, 28mm internal width, 28h, tubeless ready
Tires
Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3", Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 27.5x2.3"
Spokes
DT Swiss Industry
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front hub
Alloy, sealed cartridge bearings, 20x110mm, 28h

Geometry

Size S2 S3 S4
a
Seat tube length
394,0
420,0
420,0
b
Seat tube angle
78,2º
76,8º
76,8º
c
Top tube length
-
-
-
d
Head tube length
105,0
105,0
105,0
e
Head tube angle
62,8º
62,8º
62,8º
f
Rake
56,0
56,0
56,0
g
Trail
130,0
130,0
130,0
h
Wheelbase
1233,0
1253,0
1273,0
i
Chainstay length
442,0
442,0
442,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
626,0
626,0
626,0
l
Reach
420,0
440,0
460,0
m
Standover height
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
y
Front center
801,0
821,0
841,0
