Specialized Demo Expert 29 2019

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

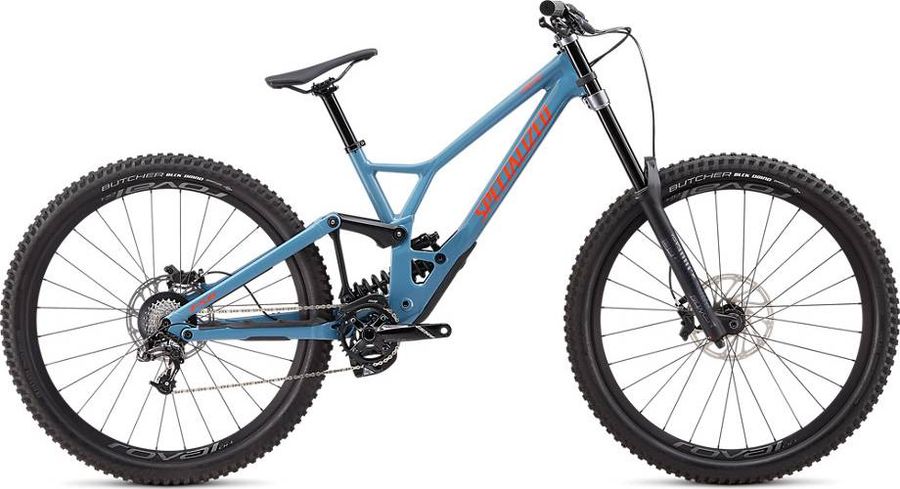

Specialized Demo Expert 29 2019

About the Specialized Demo Expert 29 2019

The Specialized Demo Expert 29 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include internal routing, boost 110 , and boost 148.

Features

The Specialized Demo Expert 29 2019 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S2: regular thickness, S3/4: XL thickness
Components
Steam
Specialized Direct Mount DH Stem, two-piece, forged alloy, 45mm
Saddle
Body Geometry Henge DH, hollow cro-mo rails,130mm
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Handlebar
Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant, GXP, alloy, 94 BCD, 165mm crankarm, MRP SXg CS ISCG-05 chainguide, 34T
Shifter
SRAM GX, trigger, 10-speed
Bottom bracket
SRAM GXP, 83mm
Cassette
SRAM PG-1030 10s
Cog finish cassete
Silver
Cog sizes
11-26t:11,12,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,15,17,19,22,25,28
11-32t 11,12,13,15,17,19,22,25,28,32
11-32t:11,12,14,15,17,19,22,25,28,32
11-36t:11,12,14,16,18,21,26,28,32,36
11-36t:11,13,15,17,19,22,25,28,32,36
Gearing
11-26t
11-28t
11-32t
11-36t
Model
CS-PG-1030-A1
Name
PG-1030 Cassette
Speed
10s
Technology cassete
PG
Rear derailleur
SRAM GX 10-speed
Chain
SRAM PC-1031
Chain connector
PowerLock
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links
Color inner link
Grey
Color outer link
Grey, Silver
Compat speed
10s
Inner link finish
Polished
Model
CN-1031-A1
Name
PC-1031 Chain
Outer link finish
Nickel, Polished
Pin variant
Solid Pin
Frameset
Frame
M5 alloy, Style-Specific DH Geometry, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
RockShox Super Deluxe RC World Cup
Body eyelet
Bearing, Standard
Compression tune
M
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-RC-B1
Name
Super Deluxe RC World Cup
Rebound tune
M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Roval 29" Alloy DH, 28mm internal width, 28h, tubeless ready
Tires
Butcher BLCK DMND, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front hub
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20x110mm thru-axle, 28h

Geometry

Size S2 S3 S4
a
Seat tube length
394,0
420,0
420,0
b
Seat tube angle
77,7º
76,3º
76,3º
c
Top tube length
557,0
594,0
614,0
d
Head tube length
105,0
105,0
105,0
e
Head tube angle
62,7º
62,7º
62,7º
f
Rake
56,0
56,0
56,0
g
Trail
131,0
131,0
131,0
h
Wheelbase
1245,0
1265,0
1285,0
i
Chainstay length
444,0
444,0
444,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
627,0
627,0
627,0
l
Reach
419,0
439,0
459,0
m
Standover height
754,0
754,0
754,0
x
Bottom bracket height
350,0
350,0
350,0
y
Front center
802,0
822,0
842,0
