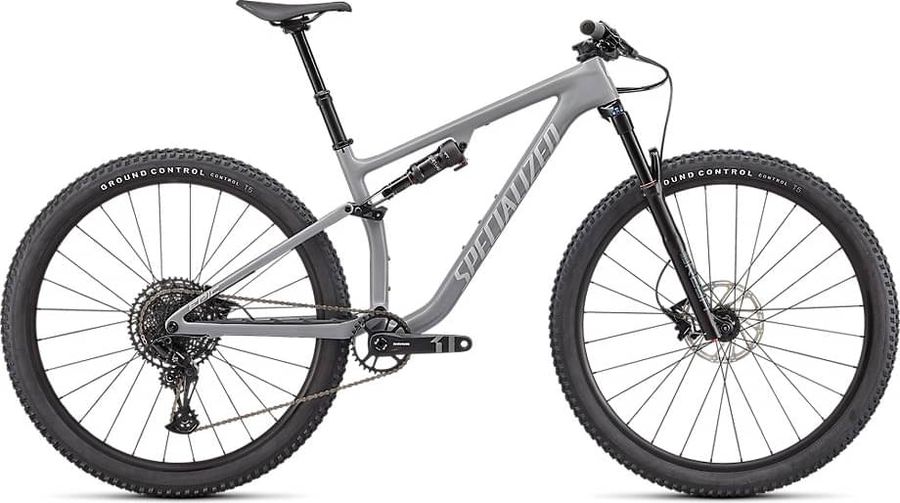

Specialized Epic EVO 2022

MTB Trail
Groupset
SRAM NX Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Specialized Epic EVO 2022

About the Specialized Epic EVO 2022

The Specialized Epic EVO 2022 is a Full suspension Trail Mountain Bike. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Specialized Epic EVO 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Saddle
Body Geometry Power Sport, steel rails
Seatpost
TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm
Handlebar
Specialized Alloy, 20mm rise, 31.8mm, 760mm wide
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM X1000 Eagle, DUB, 170/175mm 32T, 32T
Shifter
SRAM NX Eagle, trigger, 12-speed
Bottom bracket
SRAM DUB, BSA 73mm, threaded
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
IC088-2/RT004-1, 2021 EPIC EVO 11m 29
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
Tires
Front: GROUND CONTROL CONTROL 2BR, 29x2.35, Rear: GROUND CONTROL CONTROL 2BR, 29x2.35
Spokes
Stainless, 14g
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
400,0
430,0
470,0
520,0
b
Seat tube angle
75,5º
74,8º
74,5º
74,5º
74,5º
c
Top tube length
528,0
559,0
594,0
621,0
651,0
d
Head tube length
95,0
95,0
100,0
115,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
114,0
114,0
114,0
114,0
114,0
h
Wheelbase
1098,0
1124,0
1156,0
1186,0
1219,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
46,0
36,0
36,0
36,0
36,0
k
Stack height
595,0
585,0
589,0
603,0
621,0
l
Reach
372,0
398,0
428,0
452,0
477,0
m
Standover height
752,0
771,0
773,0
785,0
796,0
x
Bottom bracket height
326,0
336,0
336,0
336,0
336,0
y
Front center
672,0
697,0
729,0
759,0
792,0
