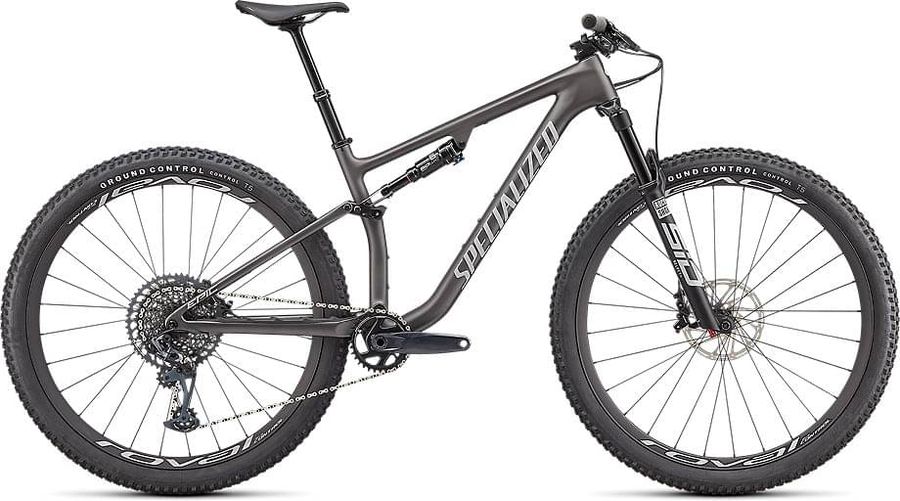

Specialized Epic EVO Expert 2022

MTB Cross Country

Groupset

SRAM X01 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

120mm

Rear travel

110mm

About the Specialized Epic EVO Expert 2022

The Specialized Epic EVO Expert 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Epic EVO Expert 2022 has 7 features listed below.

Internal routing More info

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tubeless ready More info

Specifications

Components
Steam	Alloy Trail Stem, 35mm bar bore
Saddle	Body Geometry Power Sport, steel rails
Seatpost	X-Fusion Manic, 30.9, 100/125/150 Travel, 0mm offset
Handlebar	Specialized Alloy, 20mm rise, 35mm, 760mm wide
Brakes	SRAM G2 RS Hydraulic 397 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-G2-RS-A1 Name G2 RS Orientation Front, Rear Pad type disc Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 397

Drivetrain
Crankset	SRAM X1 Eagle Alloy, DUB, 165/170/175mm, 32t, 32T
Shifter	SRAM X01 Eagle, trigger, 12-speed
Bottom bracket	SRAM DUB, BSA 73mm, threaded
Chain	SRAM GX Eagle 244 g
Chain connector PowerLock Chain length links 126 links Color inner link Black Color outer link Silver Compat speed 12s-Eagle Inner link finish Black Oxide Model CN-EAGL-GX-A1 Name GX Eagle Chain Outer link finish Nickel Pin variant Solid Pin Weight based on 114 links Weight 244
Cassette	SRAM XG-1275 Eagle 12s
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1275-B1 Name XG-1275 Eagle Cassette Speed 12s Technology cassete XG
Rear derailleur	SRAM X01 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar, Red Max tooth 52 Model RD-X0-1-B2 Name X01 Eagle Rear Derailleur Speed 12s

Frameset
Frame	FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Front suspension	RockShox SID Select+ DebonAir 1703 g
Color Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal Damper type Charger 2 RL fork offset 44mm (29") Max tire width (mm) 66 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-SID-SELP-C1 Name SID Select+ Spring DebonAir Travel (mm) 100mm, 110mm, 120mm Upper tube type 35mm tapered wall aluminum Weight based on 120mm travel W/Maxle Stealth Weight 1703 Wheel size 29"
Rear suspension	RockShox SIDluxe Select+ 236 g
Body eyelet No Bushing, No Bushing - 90 Deg Rotation, Standard Compression tune H, L, L1, LC, M Damper type RL, RLR Eye to eye stroke 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50 Lockout force 380, 430 Model RS-SIDL-SELP-A1 Name SIDLuxe Select+ Rebound tune H, L, M Shaft eyelet No Bushing, Standard, Trunnion Weight based on RL 190x45 0 Tokens Weight 236

Wheels
Rims	Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Tires	Front: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35, Rear: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35
Spokes	DT Swiss Comp Race
Rear hub	DT Swiss 350 straight-pull, 6-bolt, DT Swiss Ratchet EXP, 12x148mm thru axle, XD freehub body, 28h straight-pull
Front hub	DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull
