Specialized Epic FSR Comp 2017

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

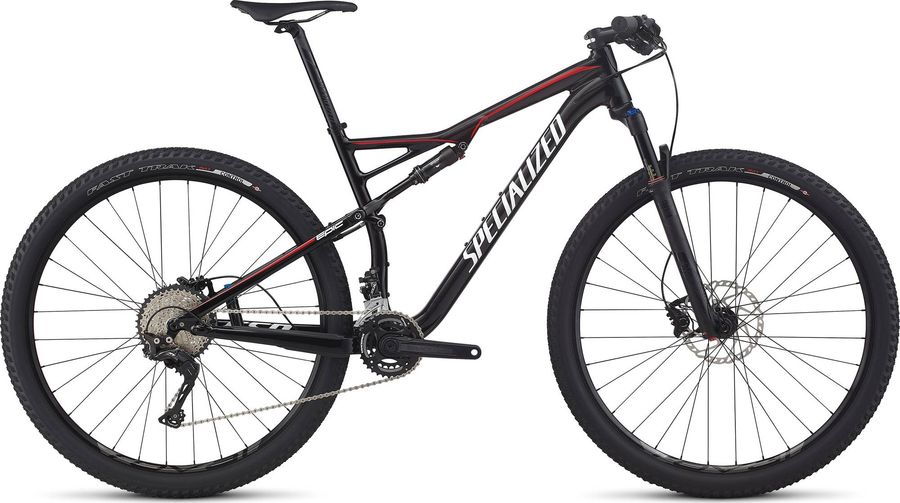

Specialized Epic FSR Comp 2017

About the Specialized Epic FSR Comp 2017

The Specialized Epic FSR Comp 2017 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Specialized Epic FSR Comp 2017 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Resin Test Ride with toe clips, CEN std.
Components
Steam
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized, alloy, single bolt, 27.2mm
Handlebar
Specialized Mini-rise, 6000 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm width, 31.8mm clamp
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 49mm chainline, RaceFace, 34/24T, 104/64mm BCD
Shifter
Shimano SLX M7000, 11-speed
Bottom bracket
PF30
Front derailleur
Shimano SLX 7025, direct-mount, down-swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
M5 alloy, fully butted, PF30 BB, front deraileur mount, 12x142mm rear spacing, 100mm of travel, internal cable routing
Rear suspension
Fox/SBC Epic remote Mini Brain w/Auto Sag. Brain Fade adjust I-Valve, 205 x 53mm
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Roval Control, hookless alloy, 21mm inner width, 32h, tubeless ready
Tires
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Rear hub
Specialized disc, alloy, sealed cartridge bearings,12x142mm thru-axle, 32h
Front hub
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
434,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
568,0
593,0
620,0
647,0
d
Head tube length
100,0
110,0
125,0
145,0
e
Head tube angle
70,5º
70,5º
70,5º
70,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
84,0
84,0
84,0
84,0
h
Wheelbase
1082,0
1112,0
1140,0
1168,0
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
587,0
601,0
615,0
634,0
l
Reach
393,0
418,0
441,0
462,0
m
Standover height
776,0
781,0
791,0
793,0
x
Bottom bracket height
332,0
332,0
332,0
332,0
y
Front center
634,0
664,0
692,0
720,0
