Specialized Epic FSR Comp Carbon World Cup - Torch Edition 2017

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
95mm

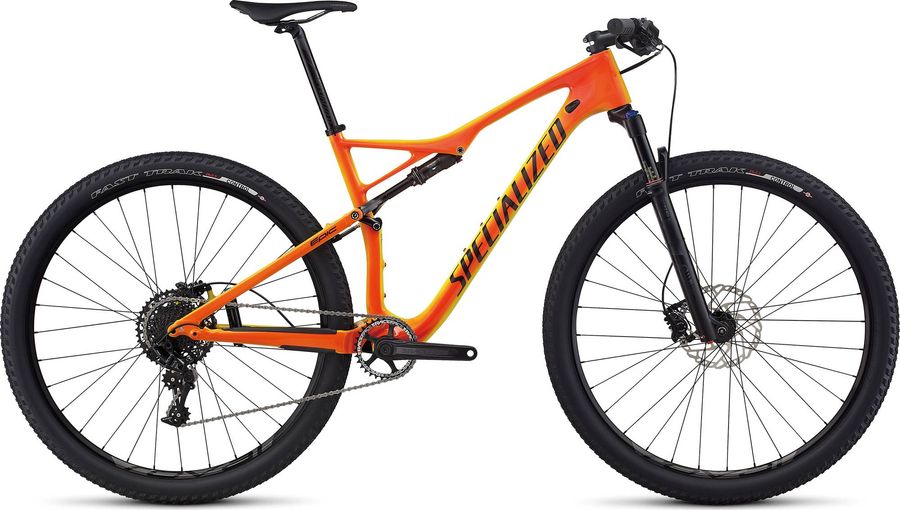

Specialized Epic FSR Comp Carbon World Cup - Torch Edition 2017

About the Specialized Epic FSR Comp Carbon World Cup - Torch Edition 2017

The Specialized Epic FSR Comp Carbon World Cup - Torch Edition 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Specialized Epic FSR Comp Carbon World Cup - Torch Edition 2017 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Components
Steam
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized, alloy, 27.2mm
Handlebar
Specialized Mini-rise, 6000 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm width, 31.8mm clamp
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 49mm chainline, 32T
Shifter
SRAM NX, 11-speed, trigger
Bottom bracket
PF30
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
FACT 9m, carbon front triangle, M5 alloy rear end, XC Geometry, MFS chainstay, PF30 BB, carbon headset cups, 12x142mm rear spacing, internal cable routing, 95mm of travel, SWAT™ tool cradle
Rear suspension
Fox/SBC Epic remote Mini Brain w/Auto Sag. Brain Fade adjust I-Valve, 200 x 48mm
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Roval Control, hookless alloy, 21mm inner width, 32h, tubeless ready
Tires
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Rear hub
Specialized disc, alloy, sealed cartridge bearings,12x142mm thru-axle, 32h
Front hub
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
434,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
592,0
618,0
643,0
d
Head tube length
90,0
105,0
120,0
140,0
e
Head tube angle
70,75º
70,75º
70,75º
70,75º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
77,0
77,0
77,0
77,0
h
Wheelbase
1073,0
1103,0
1131,0
1157,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
583,0
597,0
611,0
630,0
l
Reach
398,0
423,0
446,0
465,0
m
Standover height
770,0
774,0
780,0
793,0
x
Bottom bracket height
332,0
332,0
332,0
332,0
y
Front center
633,0
661,0
691,0
717,0
