Specialized Epic Hardtail Comp 2022

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

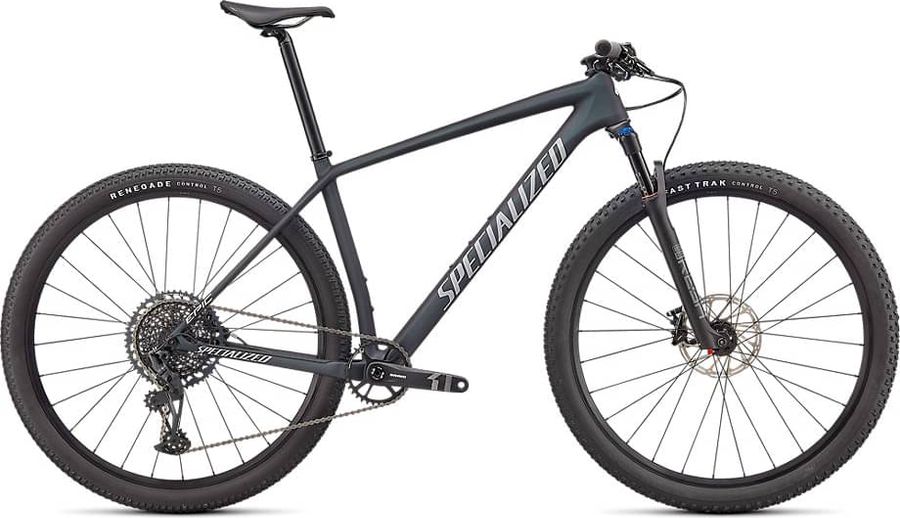

Specialized Epic Hardtail Comp 2022

About the Specialized Epic Hardtail Comp 2022

The Specialized Epic Hardtail Comp 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Specialized Epic Hardtail Comp 2022 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
3D-forged alloy, 31.8mm, 7-degree
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Specialized Alloy, Single Bolt, 30.9mm
Handlebar
Specialized Alloy Minirise, 6.5mm rise, 750mm, 31.8mm clamp
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM X1000 Eagle, DUB, 170/175mm 32T, 32T
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM DUB, BSA 73mm, threaded
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Specialized FACT 11m, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Tires
Front: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35, Rear: Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Spokes
DT Swiss Industry
Rear hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
579,0
604,0
633,0
662,0
d
Head tube length
95,0
95,0
110,0
125,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
103,0
103,0
103,0
103,0
h
Wheelbase
1090,0
1115,0
1146,0
1176,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
608,0
608,0
622,0
636,0
l
Reach
405,0
430,0
455,0
480,0
m
Standover height
762,0
792,0
816,0
847,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
668,0
693,0
723,0
753,0
