BikeWise

Specialized Fatboy 2020

MTB Fatbike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Rigid
Price
$1,875.00

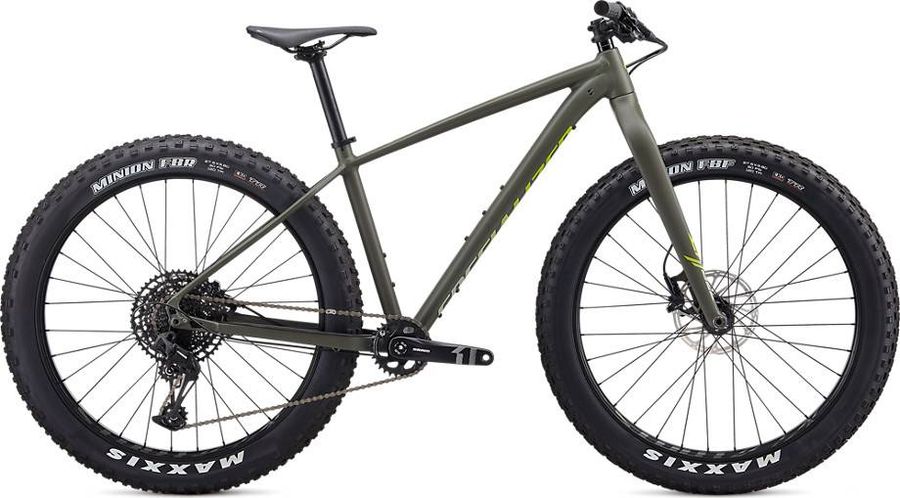

Specialized Fatboy 2020

About the Specialized Fatboy 2020

The Specialized Fatboy 2020 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain. Its features include internal routing, e-thru axle, and hydraulic disc brakes.

Features

The Specialized Fatboy 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Components
Steam
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Saddle
Specialized Bridge, size specific, 143/155
Seatpost
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM X1 Alloy
Shifter
SRAM SX Eagle, trigger, 12-speed
Bottom bracket
SRAM DUB, BSA
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Front suspension
Specialized FACT carbon, 46mm offset, tapered steerer, 150mm axle
Frame
Specialized M5 Aluminum, fully butted w/ Smooth Welds, tapered head tube and seat tube, forged post-mount 160mm disc dropouts, internal routing, forged bottom bracket shell, 197x12mm rear thru-axle
Wheels
Rims
Stout XC 80, 27.5", alloy, 76mm internal width, disc-specific, tubeless ready
Tires
Maxxis Minion FBF, 120 TPI, EXO, 27.5 x 3.8"
Spokes
Stainless, 14g
Rear hub
Stout Pro 197, sealed cartridge bearings, 6-bolt disc, 12x197mm, 32h
Front hub
Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x150mm, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
434,0
470,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
573,0
598,0
620,0
645,0
d
Head tube length
94,0
94,0
110,0
125,0
e
Head tube angle
71,0º
71,0º
71,0º
71,0º
f
Rake
47,0
47,0
47,0
47,0
g
Trail
83,0
83,0
83,0
83,0
h
Wheelbase
1082,0
1107,0
1129,0
1155,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
596,0
596,0
611,0
626,0
l
Reach
389,0
414,0
431,0
452,0
m
Standover height
759,0
780,0
807,0
841,0
x
Bottom bracket height
312,0
312,0
312,0
312,0
y
Front center
640,0
665,0
687,0
713,0
