Specialized Fatboy Expert Carbon 2018

MTB Fatbike
Groupset
SRAM X01
Frame material
Carbon
Wheel size
26"
Suspension type
Rigid

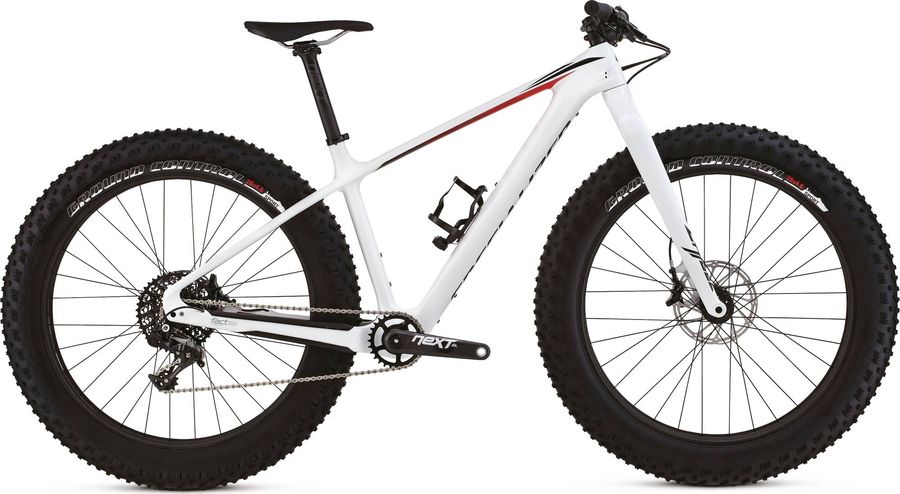

Specialized Fatboy Expert Carbon 2018

About the Specialized Fatboy Expert Carbon 2018

The Specialized Fatboy Expert Carbon 2018 is a Rigid Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 11 gears (1x11). Its features include internal routing, e-thru axle, and hydraulic disc brakes.

Features

The Specialized Fatboy Expert Carbon 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Specialized Dirt Pedals
Components
Steam
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Phenom Expert, Adaptive Edge design, hollow titanium rails, 143mm
Seatpost
Race Face Next SL, 0mm offset, 30.9mm
Handlebar
Specialized Mini-rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 750mm width, 31.8mm clamp
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Race Face Next SL, 28T
Shifter
SRAM X01, trigger, 11-speed,
Bottom bracket
PF30
Rear derailleur
SRAM X01 11s 250 g
Cable pull ratio
X-actuation
Cage
Long, n/a
Cage material
Aluminum, Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-X0-1-A2
Name
X01® X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
250
Cassette
SRAM XG-1180 MINI CLUSTER Cassette 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1180-A1
Name
XG-1180 MINI CLUSTER Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM XX1 246 g
Chain connector
PowerLock
Chain length links
118 links
Color inner link
Silver
Color outer link
Silver
Compat speed
11s
Inner link finish
Chrome Plated
Model
CN-XX-1-A1
Name
XX1 HARD CHROME Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
246
Frameset
Front suspension
Carbon, 46mm offset, tapered steerer, 150mm axle spacing
Frame
FACT 10m, full carbon frame, 12x197mm thru-axle rear, internal cable routing, ISCG XC tabs
Wheels
Rims
HED Big Deal, carbon fiber construction, single wall, tubeless-ready, 26" x 85mm-wide, 32h
Tires
Ground Control Fat, Control casing, 120 TPI, Aramid folding bead, 2Bliss Ready, 26x4.0"
Spokes
Stainless, butted, 2.0/1.8/2.0mm, black
Rear hub
Stout XC Pro, disc alloy, SRAM XD driver body, sealed cartridge bearings, 12x197mm thru-axle, 32h
Front hub
Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x1150mm, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
434,0
470,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
573,0
598,0
620,0
645,0
d
Head tube length
94,0
94,0
110,0
125,0
e
Head tube angle
70,5º
70,5º
70,5º
70,5º
f
Rake
47,0
47,0
47,0
47,0
g
Trail
80,0
80,0
80,0
80,0
h
Wheelbase
1082,0
1107,0
1129,0
1155,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
596,0
596,0
611,0
626,0
l
Reach
389,0
414,0
431,0
452,0
m
Standover height
732,5
746,0
772,3
801,5
x
Bottom bracket height
307,0
307,0
307,0
307,0
y
Front center
640,0
665,0
687,0
713,0
