Specialized Fuse 27.5+ 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

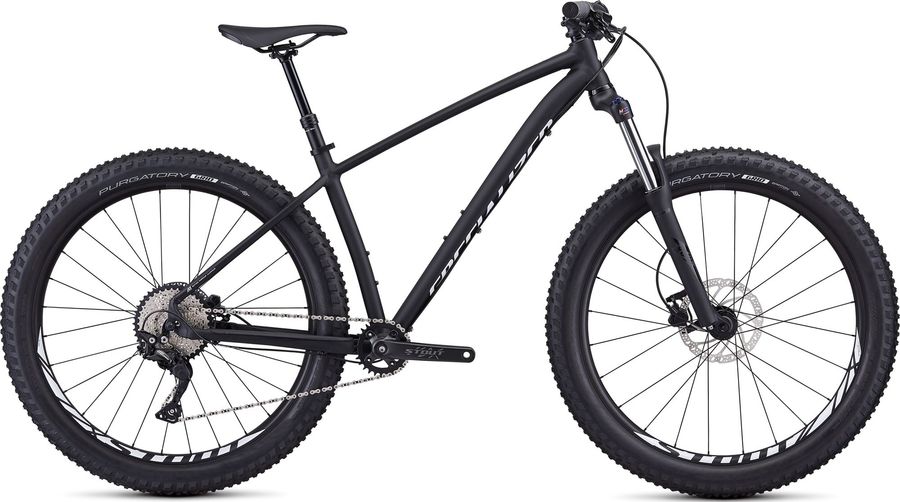

Specialized Fuse 27.5+ 2019

About the Specialized Fuse 27.5+ 2019

The Specialized Fuse 27.5+ 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Dirt
Components
Brake lever
Tektro Auriga
Saddle
Specialized Henge Comp
Brakes
Tektro Auriga
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Front suspension
SR Suntour XCM
Frame
Specialized A1 Alumínio
Wheels
Rims
Specialized Stout XC 27.5
Tires
Specialized Purgatory Grid 27.5x3.0"

Geometry

Size XS S M L XL
a
Seat tube length
330,0
373,0
432,0
460,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
558,0
585,0
606,0
631,0
655,0
d
Head tube length
95,0
95,0
100,0
115,0
130,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1099,0
1114,0
1135,0
1161,0
1187,0
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
52,0
52,0
52,0
52,0
52,0
k
Stack height
621,0
621,0
626,0
640,0
654,0
l
Reach
380,0
395,0
415,0
435,0
455,0
m
Standover height
728,0
759,0
791,0
814,0
848,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
