Specialized Fuse 27.5 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Price
$1,500.00

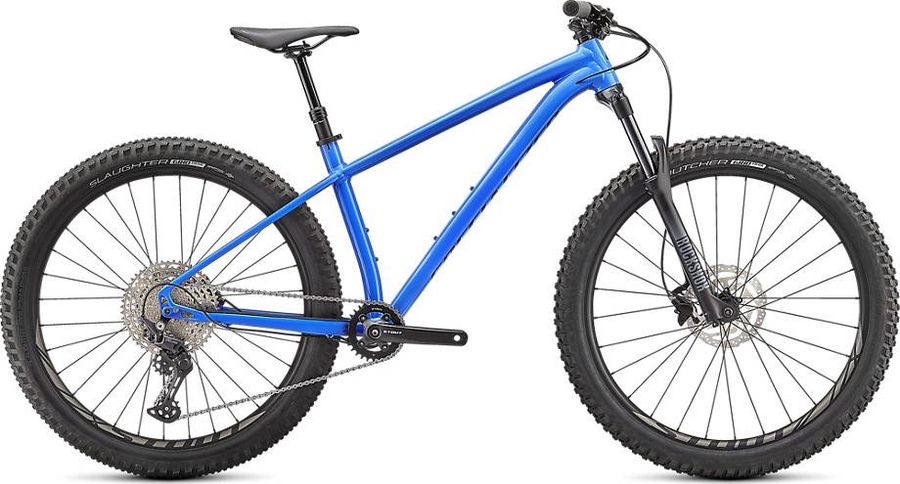

Specialized Fuse 27.5 2020

About the Specialized Fuse 27.5 2020

The Specialized Fuse 27.5 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Fuse 27.5 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Specialized Trail Grips
Components
Steam
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
TranzX Dropper, 30.9mm, XS-S: 100mm, M-XL: 120mm
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Stout, forged alloy, 76mm BCD, 30T
Shifter
Shimano Deore, M5100, 11spd
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
Specialized A1 Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Stout Trail 27.5, 38mm internal width, disc-specific
Tires
Butcher GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8"
Spokes
Stainless, 14g
Rear hub
Shimano MT400-B, Centerlock 32h, 12x148 Boost
Front hub
Shimano MT400-B, Centerlock 28h, 15x110 Boost

Geometry

Size XS SM MD LG XL
a
Seat tube length
340,0
375,0
410,0
455,0
505,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
564,0
584,0
604,0
628,0
652,0
d
Head tube length
105,0
105,0
105,0
120,0
135,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
113,0
113,0
113,0
113,0
113,0
h
Wheelbase
1111,0
1131,0
1151,0
1177,0
1204,0
i
Chainstay length
421,0
421,0
421,0
421,0
421,0
j
Bottom bracket drop
48,0
48,0
48,0
48,0
48,0
k
Stack height
594,0
594,0
594,0
606,0
621,0
l
Reach
391,0
411,0
431,0
451,0
471,0
m
Standover height
708,0
727,0
730,0
735,0
780,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
y
Front center
695,0
715,0
735,0
761,0
787,0
