Groupset
microSHIFT Advent
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Price
$1,500.00

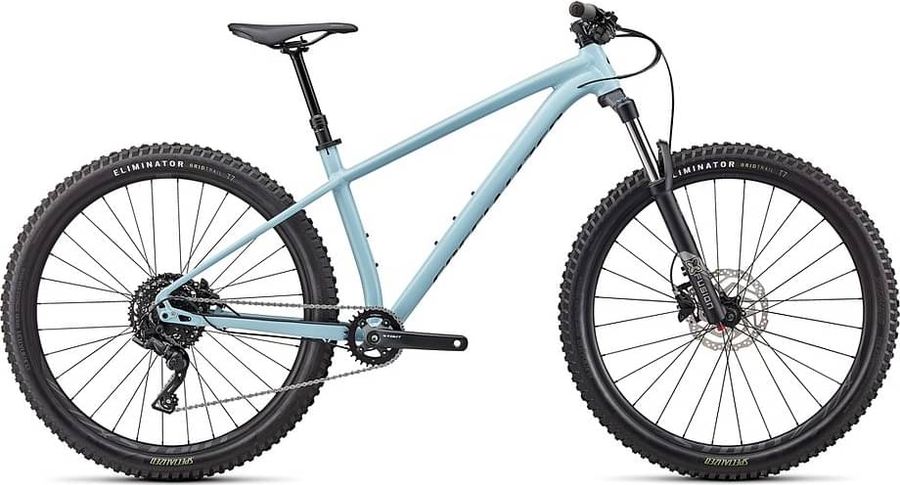

About the Specialized Fuse 27.5 2022
The Specialized Fuse 27.5 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a microSHIFT Advent drivetrain of 9 gears (1x9). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Specialized Trail Grips, lock-on
|
|---|
|
Steam
|
Stout 3D-forged alloy, 31.8mm, 6-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Bridge Saddle, steel rails
|
|
Seatpost
|
TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm
|
|
Handlebar
|
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Stout, forged alloy, 76mm BCD, 30T
|
|---|---|
|
Shifter
|
microSHIFT Advent, 9-speed
|
|
Bottom bracket
|
Square-tapered, 73mm, internal bearings, 122.5mm spindle
|
|
Chain
|
KMC 9v
|
|
Cassette
|
microSHIFT 9-speed
|
|
Rear derailleur
|
microSHIFT Advent
|
|
Frame
|
Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
|
|---|---|
|
Front suspension
|
X-Fusion Mig
|
|
Rims
|
Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible
|
|---|---|
|
Tires
|
Front: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Shimano MT400-B, Centerlock, 12x148 Boost, 32h
|
|
Front hub
|
Shimano MT400-B, Centerlock 28h, 15x110 Boost
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
375,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
564,0
|
584,0
|
604,0
|
628,0
|
652,0
|
|
d
Head tube length
|
105,0
|
105,0
|
105,0
|
120,0
|
135,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
113,0
|
113,0
|
113,0
|
113,0
|
113,0
|
|
h
Wheelbase
|
1111,0
|
1131,0
|
1151,0
|
1177,0
|
1204,0
|
|
i
Chainstay length
|
421,0
|
421,0
|
421,0
|
421,0
|
421,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
594,0
|
594,0
|
594,0
|
606,0
|
621,0
|
|
l
Reach
|
391,0
|
411,0
|
431,0
|
451,0
|
471,0
|
|
m
Standover height
|
708,0
|
727,0
|
730,0
|
735,0
|
780,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
695,0
|
715,0
|
735,0
|
761,0
|
787,0
|
