Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

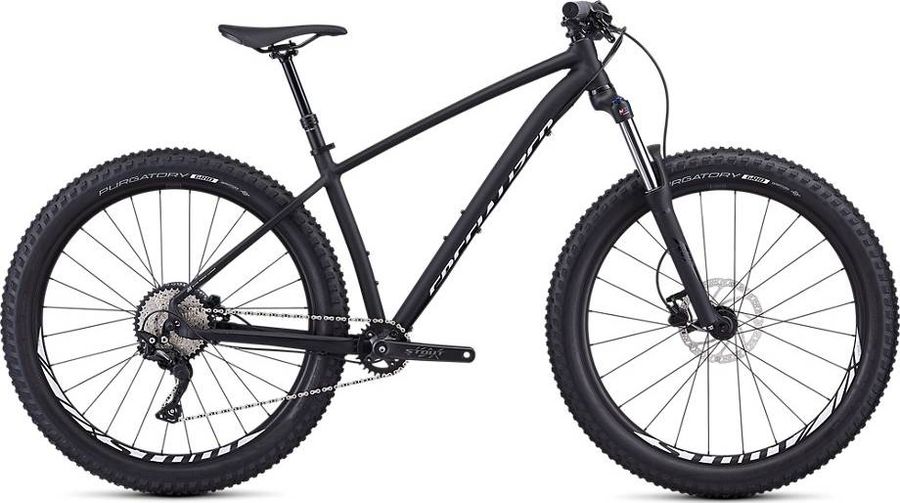

About the Specialized Fuse 27.5+ 2019
The Specialized Fuse 27.5+ 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|---|
|
Pedals
|
Specialized Dirt
|
|
Steam
|
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
|
|
Seatpost
|
TransX Dropper, TranzX dropper, internal cable routing, remote lever, 30.9mm, 120mm Travel
|
|
Handlebar
|
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
|
|
Brakes
|
Tektro Auriga
|
|
Crankset
|
Stout, forged alloy, 76mm BCD, Alloy, 28T
|
|---|---|
|
Shifter
|
Shimano Deore, 10-speed
|
|
Bottom bracket
|
Square taper, 73mm, internal bearings
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Deore RD-M6000-SGS
SGS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
A1 Premium Aluminum w/ Smooth Welds, Zero Stack 44 head tube, forged post-mount 160mm disc, 141mm QR dropout, alloy replaceable derailleur hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Stout Trail 27.5, 38mm internal width, disc-specific
|
|---|---|
|
Tires
|
Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 3.0"
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Stout, alloy, sealed cartridge bearings, 6-bolt disc, 10-speed freehub, quick-release, 28h
|
|
Front hub
|
Stout, alloy, sealed cartridge bearings, 15x110mm thru-axle, 24h
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
373,0
|
432,0
|
460,0
|
510,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
556,0
|
583,0
|
604,0
|
629,0
|
653,0
|
|
d
Head tube length
|
95,0
|
95,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
47,0
|
47,0
|
47,0
|
47,0
|
47,0
|
|
g
Trail
|
101,0
|
101,0
|
101,0
|
101,0
|
101,0
|
|
h
Wheelbase
|
1097,0
|
1112,0
|
1133,0
|
1159,0
|
1185,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
52,0
|
52,0
|
52,0
|
52,0
|
52,0
|
|
k
Stack height
|
619,0
|
619,0
|
624,0
|
638,0
|
652,0
|
|
l
Reach
|
378,0
|
393,0
|
413,0
|
433,0
|
453,0
|
|
m
Standover height
|
726,0
|
757,0
|
789,0
|
812,0
|
846,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
669,0
|
684,0
|
706,0
|
731,0
|
757,0
|
