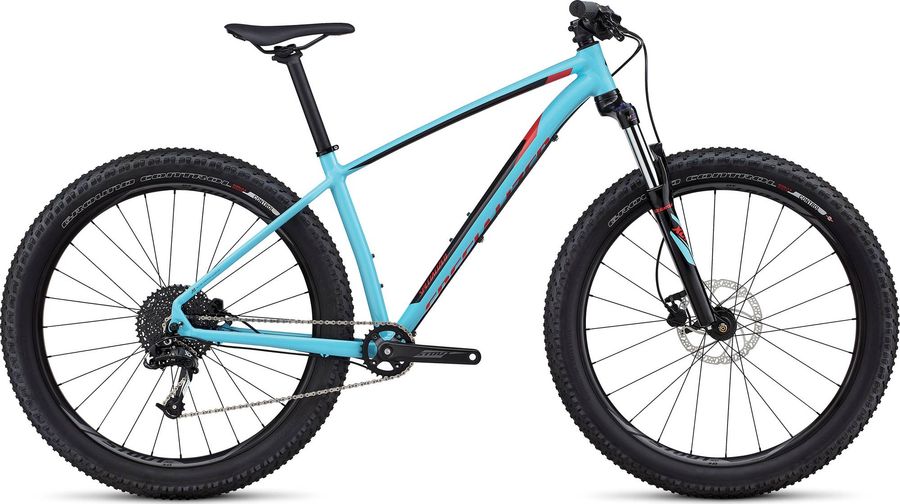

Specialized Fuse 6Fattie 2017
Groupset
SRAM X7
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Specialized Fuse 6Fattie 2017
The Specialized Fuse 6Fattie 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM X7 drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|---|
|
Pedals
|
Specialized Dirt Pedals
|
|
Steam
|
Alloy, 7-degree rise, 31.8mm clamp
|
|---|---|
|
Saddle
|
Body Geometry Henge Sport, steel rails, 143mm
|
|
Seatpost
|
Alloy, 12.5mm offset, 2-bolt clamp, 30.9mm
|
|
Handlebar
|
Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
|
|
Brakes
|
Tektro Auriga
|
|
Crankset
|
Stout, 76mm BCD spider, 28T
|
|---|---|
|
Shifter
|
SRAM X5, 10-speed, trigger
|
|
Bottom bracket
|
Square taper, 73mm, internal bearings
|
|
Cassette
|
Sunrace MS3 11-42T 10-speed
|
|
Chain
|
SRAM PC-1031
|
|
|
|
|
Rear derailleur
|
SRAM X7 Rear Derailleur
10s, 9s
|
|
|
|
|
Frame
|
A1 Premium Aluminum w/smooth welding, Zero Stack 44 head tube, forged post mount 160mm disc, 141mm QR dropout, alloy replaceable derailleur hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
Stout 650b, alloy, disc only, 38mm inner width, 24/28h
|
|---|---|
|
Spokes
|
Stainless, 14g, black
|
|
Rear hub
|
Specialized Stout, 10-speed, 10x141mm spacing, sealed cartridge bearings, 28h
|
|
Front hub
|
Specialized Stout, sealed cartridge bearings, 15x110mm spacing, 24h
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
373,0
|
432,0
|
460,0
|
510,0
|
|
b
Seat tube angle
|
74,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
551,0
|
583,0
|
603,0
|
627,0
|
652,0
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
93,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1076,0
|
1099,0
|
1119,0
|
1144,0
|
1170,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
601,0
|
620,0
|
620,0
|
634,0
|
648,0
|
|
l
Reach
|
378,0
|
393,0
|
413,0
|
433,0
|
453,0
|
|
m
Standover height
|
713,0
|
753,0
|
783,0
|
806,0
|
839,0
|
|
x
Bottom bracket height
|
317,0
|
317,0
|
317,0
|
317,0
|
317,0
|
|
y
Front center
|
649,0
|
671,0
|
691,0
|
716,0
|
742,0
|
