Specialized Fuse Comp 27.5+ 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

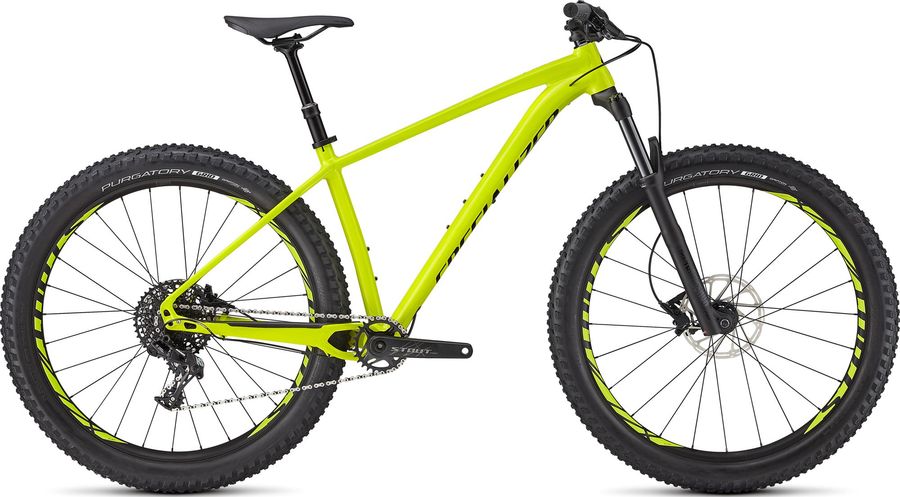

Specialized Fuse Comp 27.5+ 2019

About the Specialized Fuse Comp 27.5+ 2019

The Specialized Fuse Comp 27.5+ 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Dirt
Components
Saddle
Specialized Henge Comp
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Shifter
SRAM NX
Chain
KMC X11
Frameset
Frame
Specialized M4 Alumínio
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Specialized Stout XC 27.5
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Tires
Specialized Purgatory Grid 27.5x3.0"

Geometry

Size S M L XL XXL
a
Seat tube length
394,0
434,0
470,0
505,0
555,0
b
Seat tube angle
74,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
575,0
608,0
633,0
656,0
679,0
d
Head tube length
95,0
100,0
115,0
130,0
150,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1114,0
1136,0
1161,0
1185,0
1211,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
51,0
51,0
51,0
51,0
51,0
k
Stack height
610,0
614,0
629,0
643,0
661,0
l
Reach
400,0
420,0
440,0
458,0
476,0
m
Standover height
757,0
781,0
806,0
830,0
866,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
