BikeWise

Specialized Fuse Comp 29 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm
Price
$2,200.00

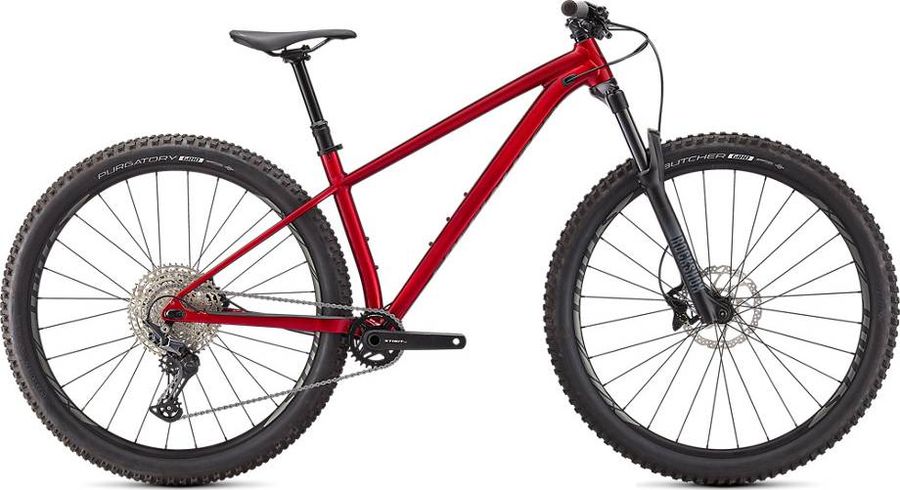

Specialized Fuse Comp 29 2020

About the Specialized Fuse Comp 29 2020

The Specialized Fuse Comp 29 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Fuse Comp 29 2020 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Trail Grips
Components
Steam
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Stout Pro, forged alloy, 30T
Bottom bracket
BSA for 24mm spindle
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
KMC X12
Frameset
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Alloy SL, disc only, double-wall, 29mm internal width, 28h, tubeless ready
Tires
Butcher, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Spokes
Stainless, 14g
Rear hub
Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
Front hub
Shimano MT410-B, Centerlock 28h, 15x110 Boost

Geometry

Size XS SM MD LG XL
a
Seat tube length
340,0
375,0
410,0
455,0
505,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
610,0
634,0
658,0
d
Head tube length
95,0
95,0
95,0
110,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
113,0
113,0
113,0
113,0
113,0
h
Wheelbase
1113,0
1133,0
1153,0
1179,0
1205,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
616,0
616,0
616,0
630,0
643,0
l
Reach
391,0
411,0
431,0
451,0
471,0
m
Standover height
718,0
738,0
741,0
745,0
784,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
y
Front center
698,0
718,0
738,0
764,0
790,0
