Specialized Fuse Comp 29 2022

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm
Price
$3,000.00

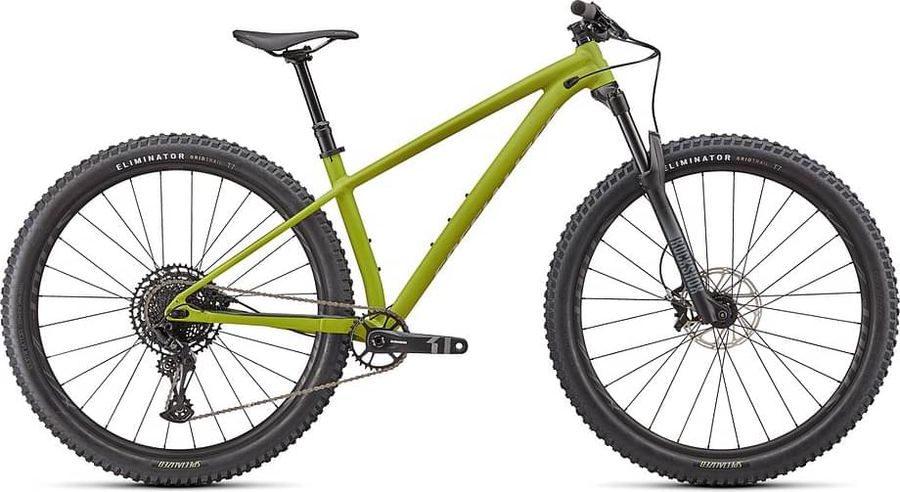

Specialized Fuse Comp 29 2022

About the Specialized Fuse Comp 29 2022

The Specialized Fuse Comp 29 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Fuse Comp 29 2022 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM, X1 Alloy Eagle, 12-speed, 32T
Shifter
SRAM NX Eagle, trigger, 12-speed
Bottom bracket
SRAM DUB, BSA 73mm, threaded
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
Tires
Front: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Spokes
Stainless, 14g
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Geometry

Size XS SM MD LG XL
a
Seat tube length
340,0
375,0
410,0
455,0
505,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
610,0
634,0
658,0
d
Head tube length
95,0
95,0
95,0
110,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
113,0
113,0
113,0
113,0
113,0
h
Wheelbase
1113,0
1133,0
1153,0
1179,0
1205,0
i
Chainstay length
411,0
411,0
411,0
411,0
411,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
616,0
616,0
616,0
630,0
643,0
l
Reach
391,0
411,0
431,0
451,0
471,0
m
Standover height
718,0
738,0
741,0
745,0
784,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
y
Front center
698,0
718,0
738,0
764,0
790,0
