Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

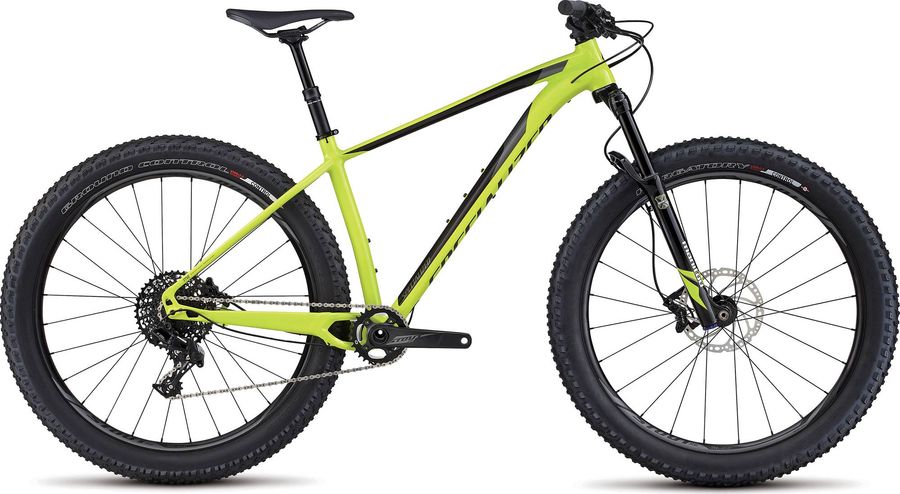

About the Specialized Fuse Comp 6Fattie 2017
The Specialized Fuse Comp 6Fattie 2017 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|---|
|
Pedals
|
Specialized Dirt Pedals
|
|
Steam
|
Alloy, 7-degree rise, 31.8mm clamp
|
|---|---|
|
Saddle
|
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
|
|
Seatpost
|
TranzX dropper, internal cable routing, remote lever, 30.9mm, S/M: 100mm, L/XL: 120mm travel
|
|
Handlebar
|
Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
|
|
Brakes
|
TRP Slate X2
|
|
Crankset
|
Specialized Stout XC, forged alloy, 30mm Cr-Mo spindle, 76mm BCD spider, 28T
|
|---|---|
|
Shifter
|
SRAM NX, 11-speed, trigger
|
|
Bottom bracket
|
BB30, sealed cartridge bearings
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Chain
|
SRAM PC-1130
259 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
Fully butted M4 Aluminum w/smooth welding, tapered head tube and seat tube, forged post mount 160mm disc, 148mm thru-axle dropout, alloy replaceable derailleur hanger
|
|---|---|
|
Front suspension
|
Manitou Machete
|
|
Rims
|
Stout 650b, alloy, disc only, 38mm inner width, 24/28h
|
|---|---|
|
Spokes
|
Stainless, 14g, black
|
|
Rear hub
|
Specialized Stout, SRAM XD driver, 12x148mm spacing, sealed cartridge bearings, 28h
|
|
Front hub
|
Specialized Stout, alloy, sealed cartridge bearings, 15x110mm spacing, 24h
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
394,0
|
434,0
|
470,0
|
505,0
|
555,0
|
|
b
Seat tube angle
|
74,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
569,0
|
602,0
|
627,0
|
650,0
|
673,0
|
|
d
Head tube length
|
110,0
|
100,0
|
115,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
95,0
|
95,0
|
95,0
|
95,0
|
95,0
|
|
h
Wheelbase
|
1106,0
|
1130,0
|
1155,0
|
1179,0
|
1205,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
k
Stack height
|
599,0
|
608,0
|
623,0
|
637,0
|
655,0
|
|
l
Reach
|
394,0
|
414,0
|
434,0
|
452,0
|
470,0
|
|
m
Standover height
|
749,0
|
775,0
|
800,0
|
824,0
|
860,0
|
|
x
Bottom bracket height
|
319,0
|
319,0
|
319,0
|
319,0
|
319,0
|
|
y
Front center
|
686,0
|
708,0
|
735,0
|
760,0
|
786,0
|
