Specialized Fuse Expert 29 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm
Price
$2,700.00

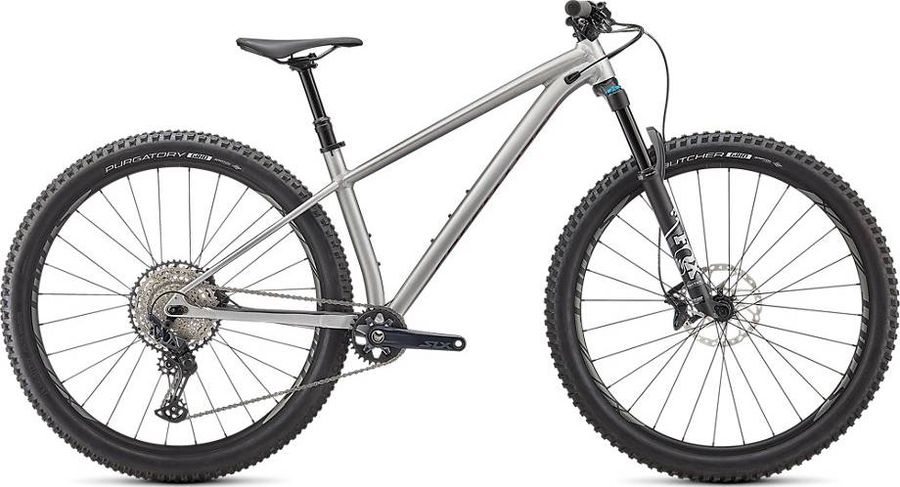

Specialized Fuse Expert 29 2020

About the Specialized Fuse Expert 29 2020

The Specialized Fuse Expert 29 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Fuse Expert 29 2020 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Trail Grips
Components
Steam
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel
Handlebar
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano SLX, M7120 12spd, 30T
Shifter
Shimano SLX, M7100, 12spd
Bottom bracket
Shimano, BB-MT800, Threaded
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Alloy SL, disc only, double-wall, 29mm internal width, 28h, tubeless ready
Tires
Butcher, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Spokes
Stainless, 14g
Rear hub
Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline
Front hub
Shimano MT410-B, Centerlock 28h, 15x110 Boost

Geometry

Size XS SM MD LG XL
a
Seat tube length
340,0
375,0
410,0
455,0
505,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
610,0
634,0
658,0
d
Head tube length
95,0
95,0
95,0
110,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
113,0
113,0
113,0
113,0
113,0
h
Wheelbase
1113,0
1133,0
1153,0
1179,0
1205,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
616,0
616,0
616,0
630,0
643,0
l
Reach
391,0
411,0
431,0
451,0
471,0
m
Standover height
718,0
738,0
741,0
745,0
784,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
y
Front center
698,0
718,0
738,0
764,0
790,0
