Specialized Fuse Sport 6Fattie/29 2018
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

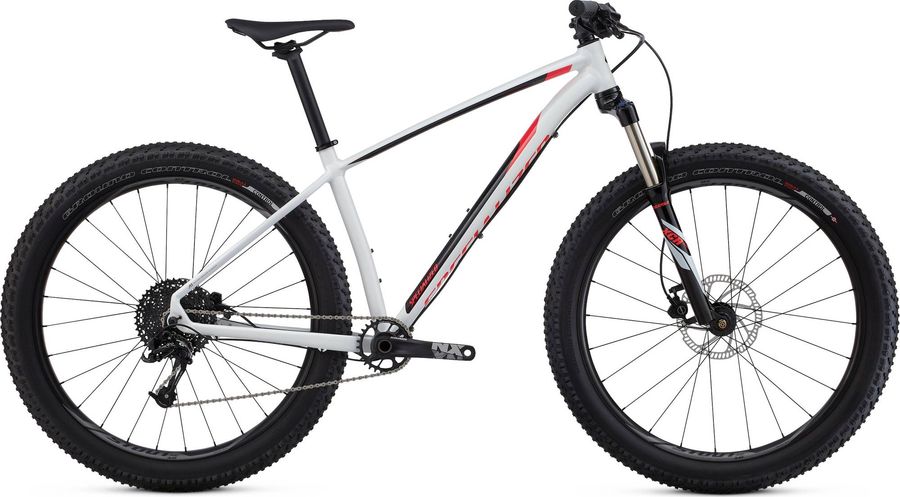

About the Specialized Fuse Sport 6Fattie/29 2018
The Specialized Fuse Sport 6Fattie/29 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|---|
|
Pedals
|
Specialized Dirt Pedals
|
|
Steam
|
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Henge Sport, steel rails, 143mm
|
|
Seatpost
|
Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm
|
|
Handlebar
|
Stout riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
|
|
Brakes
|
Tektro Gemini
|
|
Crankset
|
SRAM NX, alloy, 24mm spindle, 52mm chainline, 175/170mm crankarm, direct mount X-Sync chainring, 28T
|
|---|---|
|
Shifter
|
SRAM X5, trigger, 10-speed
|
|
Bottom bracket
|
SRAM GXP, 73mm
|
|
Cassette
|
Sunrace MS3 11-42T 10-speed
|
|
Rear derailleur
|
SRAM GX 10-speed
|
|
Chain
|
SRAM PC-1031
|
|
|
|
|
Frame
|
A1 Premium Aluminum w/smooth welding, Zero Stack 44 head tube, forged post mount 160mm disc, 141mm QR dropout, alloy replaceable derailleur hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCR
|
|
Rims
|
Stout 38 27.5, 19mm rim depth, 38mm internal width, 24/28h
|
|---|---|
|
Tires
|
Ground Control, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 3.0"
|
|
Spokes
|
Stainless, black, 14g
|
|
Rear hub
|
Stout 141, alloy, sealed cartridge bearings, 6-bolt disc, 10-speed freehub, quick-release, 10x141mm spacing, 28h
|
|
Front hub
|
Stout 110, alloy, sealed cartridge bearings, 15x110mm thru-axle, 24h
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
373,0
|
432,0
|
460,0
|
510,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
74,0º
|
|
c
Top tube length
|
551,0
|
583,0
|
603,0
|
627,0
|
652,0
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
93,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1076,0
|
1099,0
|
1119,0
|
1144,0
|
1170,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
433,0
|
433,0
|
433,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
601,0
|
620,0
|
620,0
|
634,0
|
648,0
|
|
l
Reach
|
378,0
|
393,0
|
413,0
|
433,0
|
453,0
|
|
m
Standover height
|
713,0
|
753,0
|
783,0
|
806,0
|
839,0
|
|
x
Bottom bracket height
|
317,0
|
317,0
|
317,0
|
317,0
|
317,0
|
|
y
Front center
|
649,0
|
671,0
|
691,0
|
716,0
|
742,0
|
