Specialized Men's Camber 29 2018

MTB Trail

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

29"

Suspension type

Full suspension

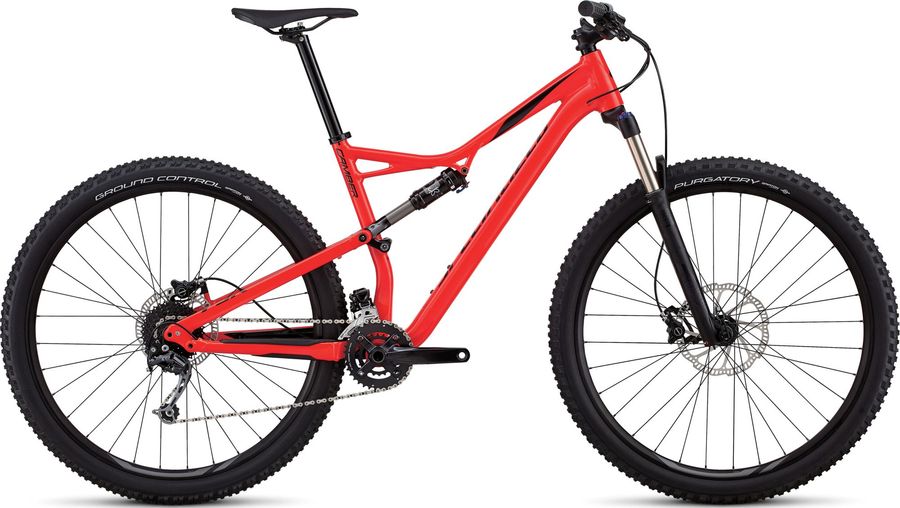

About the Specialized Men's Camber 29 2018

The Specialized Men's Camber 29 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9).

Specifications

Acessories
Grip	Specialized Sip Grip
Pedals	Specialized Plataforma 9/16"

Components
Handlebar	Specialized Alumínio 6061

Drivetrain
Rear derailleur	Shimano Deore RD-M592 SGS 9s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Cable fixing bolt finish Plated Cable fixing bolt material Steel Compatible chain HG 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M592-SGS P axle material Steel Pulley bolts material Stainless steel Sunken type pulley bolt Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T
Bottom bracket	SRAM GXP 108 g
BB frame interface English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm) Bearing type Ceramic, Standard Chain line 51.0mm, n/a Crank interface GXP Cup material Aluminum Model BB-GXP-A1 Name GXP Bottom Bracket Spindle diameter 24mm Weight based on BB GXP Team English 68/73 Weight 108
Chain	KMC X10
Front derailleur	SRAM GX 2x10 153 g
Chain stay angle 66-69 degrees Clamp size 31.8mm, 31.8mm\|34.9mm, 34.9mm Color Black Compatible chain 34/22, 38/24\|36/22 Model FD-GX-HC-A1 Mounting type Clamp-High Name GX 10-speed High Clamp Mount Front Derailleur Speed 2x10 Weight based on FD HC 34t Top Pull 34.9 Weight 153
Shifter	Shimano Alivio SL-M4000

Frameset
Front suspension	RockShox Recon RL Solo Air
Color Diffusion Black, Gloss Black, Gloss White fork offset 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-RCN-RL-A1 Name Recon RL Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm, 80mm Upper tube type 32mm straight wall steel Wheel size 27.5", 29"
Frame	Specialized M5 Alumínio
Rear suspension	X-Fusion O2 Pro RL

Wheels
Tires	Specialized Purgatory 29x2.3"

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 2 × 9

Crank: 36-22T

Cassette: 11-34T

Speeds: 18s

Gearing

Average

0,65

Average

3,28

Compared to similar bikes, the Specialized Men's Camber 29 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	S	M	L	XL	XXL
a Seat tube length	396,0	430,0	468,0	523,0	523,0
b Seat tube angle	75,0º	75,0º	75,0º	75,0º	75,0º
c Top tube length	562,0	590,0	613,0	647,0	669,0
d Head tube length	95,0	95,0	115,0	145,0	170,0
e Head tube angle	68,5º	68,5º	68,5º	68,5º	68,5º
f Rake	-	-	-	-	-
g Trail	-	-	-	-	-
h Wheelbase	1107,0	1135,0	1160,0	1197,0	1222,0
i Chainstay length	437,0	437,0	437,0	437,0	437,0
j Bottom bracket drop	42,0	42,0	42,0	42,0	42,0
k Stack height	609,0	609,0	627,0	655,0	678,0
l Reach	399,0	427,0	445,0	471,0	487,0
m Standover height	734,0	739,0	752,0	764,0	778,0
x Bottom bracket height	-	-	-	-	-
y Front center	-	-	-	-	-
