Specialized Men's Chisel Comp X1 2019

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail

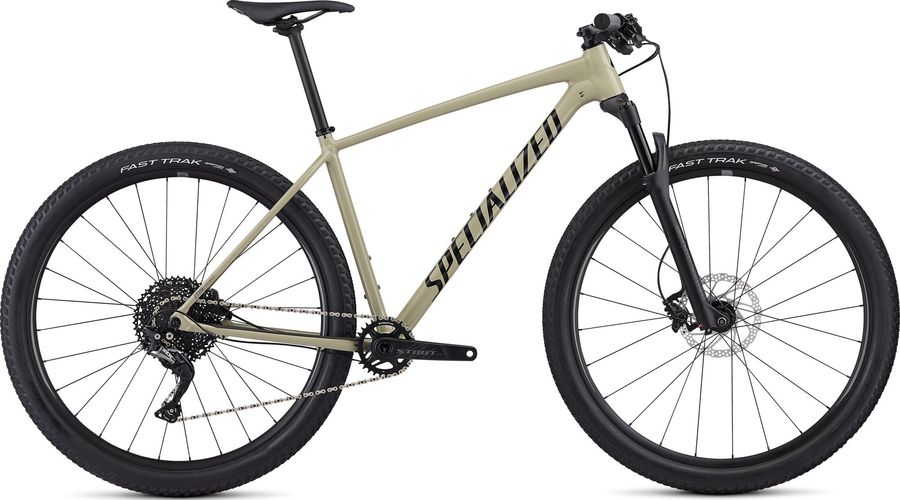

Specialized Men's Chisel Comp X1 2019

About the Specialized Men's Chisel Comp X1 2019

The Specialized Men's Chisel Comp X1 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Dirt
Components
Handlebar
Specialized Mini Rise Alumínio
Saddle
Specialized Phenom Comp
Drivetrain
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Shifter
Shimano SLX SL-M7000 135 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
135 ( /pc)
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 11-speed
Compatible with I spec
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M7000-11-R
Mount type
Clamp band
Optical gear display
With (removable)
Speeds
11
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Chain
KMC X11
Frameset
Front suspension
RockShox Judy Gold Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
58, 62, 81
Maximum rotor size
185mm, 210mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A3
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Frame
Specialized M5 Alumínio
Wheels
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Tires
Specialized Fast Trak 29x2.3"

Geometry

Size S M L XL
a
Seat tube length
400,0
430,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
567,0
594,0
622,0
648,0
d
Head tube length
95,0
95,0
110,0
125,0
e
Head tube angle
69,8º
69,8º
69,8º
69,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1073,0
1,1e3
1128,0
1154,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
57,5
57,5
57,5
57,5
k
Stack height
595,0
605,0
619,0
633,0
l
Reach
395,0
418,0
441,0
462,0
m
Standover height
760,0
790,0
814,0
845,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
