Specialized Men's Epic Comp Carbon 2018

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

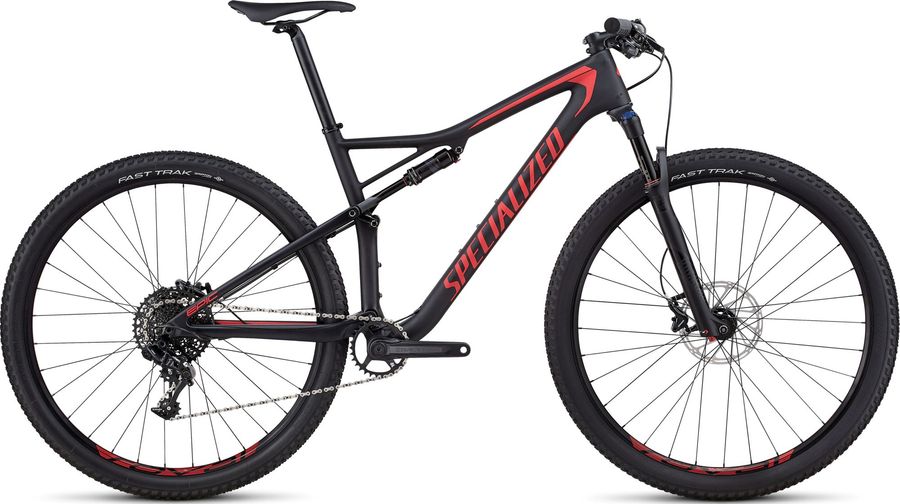

Specialized Men's Epic Comp Carbon 2018

About the Specialized Men's Epic Comp Carbon 2018

The Specialized Men's Epic Comp Carbon 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Handlebar
Specialized Mini Rise Alumínio
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Saddle
Specialized Phenom Comp
Drivetrain
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Shifter
SRAM GX 10, 2s 123 g
Cable length
1900mm, 2200mm
Cable pull ratio
Exact actuation
Color
Black
Compatible derailleur hub
FD: 2s, FD: 2s/RD: 10s, RD: 10s, Set: FD: 2s/RD: 10s
Matchmaker compatible
Yes
Model
SL-GX-A1
Name
GX 2x10 EXACT ACTUATION Trigger Shifters
Shifter type
Trigger
Speeds
10, 2
Weight based on
GX 10s Shifter Rear
Weight
123
Chain
KMC X11
Crankset
Race Face Aeffect
Rear derailleur
SRAM GX
Frameset
Frame
Specialized FACT 11m carbon
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Front hub
Specialized sealed, 15x110mm, spacing, 32h
Tires
Specialized Fast Trak 29x2.3"
Rims
Roval Control
Rear hub
Specialized sealed, 12x148mm, thru-axle, 32h
Spokes
DT Swiss Industry

Geometry

Size S M L XL
a
Seat tube length
400,0
434,0
470,0
520,0
b
Seat tube angle
74,75º
74,75º
74,75º
74,75º
c
Top tube length
568,0
595,0
623,0
649,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1095,0
1123,0
1152,0
1178,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
38,9
38,9
38,9
38,9
k
Stack height
588,0
597,0
611,0
630,0
l
Reach
408,0
433,0
456,0
475,0
m
Standover height
764,0
770,0
776,0
799,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
